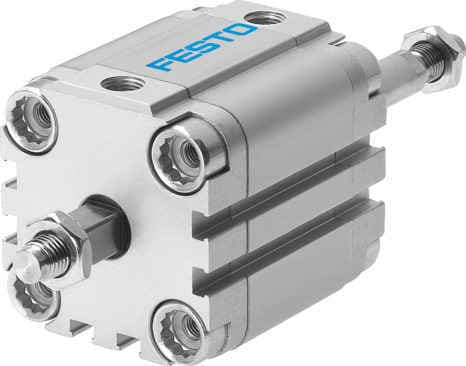

High Precision and ReliabilityThe Festo ADVULQ-100-A-P-A-S2 is engineered for high precision, ensuring consistent performance in a wide range of applications. Its double-acting operation allows for precise control and reliable movement.
2
Elastic Cushioning for Smooth OperationEquipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
3
Versatile Mounting OptionsThe ADVULQ-100-A-P-A-S2 offers optional mounting positions, allowing for flexible installation in various industrial settings. This versatility makes it a valuable asset for diverse applications.
4
Corrosion Resistance and DurabilityWith a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, ensuring durability in harsh environments. Its construction also meets LABS (PWIS) conformity and VDMA24364-B1/B2-L standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 400mm
Piston diameter
100 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Operational Flexibility with Compressed AirThe ADVULQ-100-A-P-A-S2 operates with compressed air to ISO 8573-1:2010 [7:4:4] standards, allowing for both lubricated and unlubricated operation. This flexibility makes it suitable for a variety of industrial applications.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991219
Variants
Through piston rod
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
