advulq-50- -a-p-a-s2

Name: advulq-50- -a-p-a-s2
Brand: FESTO
SKU: advulq-50- -a-p-a-s2

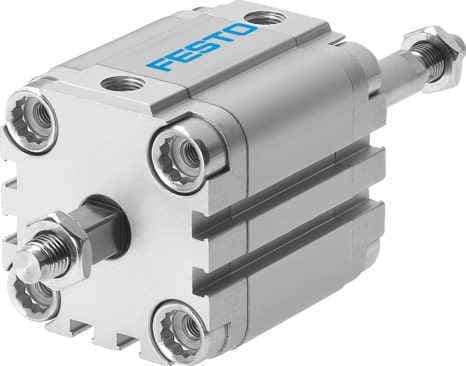

The Festo ADVU-50-A-P-A-S2 is a compact, double-acting pneumatic cylinder with elastic cushioning and optional through-hole mounting. It operates with compressed air and is suitable for various industrial applications.

Product Modeladvulq-50- -a-p-a-s2

Material Number156156

Product ID3480

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact DesignThe Festo ADVU-50-A-P-A-S2 offers a compact design, making it ideal for space-constrained industrial environments. Its small footprint allows for efficient use of space without compromising performance.
2
Elastic CushioningEquipped with elastic cushioning rings/pads at both ends, this cylinder provides smooth operation and reduces wear and tear on the piston and cylinder barrel. This feature ensures consistent performance over time.
3
Double-Acting OperationDesigned for double-acting operations, the ADVU-50-A-P-A-S2 can be used in both retracting and advancing strokes. This versatility makes it suitable for a wide range of applications, including manufacturing, assembly, and material handling.
4
Optional Through-Hole MountingThe cylinder can be mounted either with a through-hole or with accessories, providing flexibility in installation. This option allows users to choose the most convenient mounting method based on their specific needs.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

1mm 300mm

Piston diameter

50 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston rod end

External thread

Compressed Air OperationOperating with compressed air to ISO 8573-1:2010 standards, the ADVU-50-A-P-A-S2 ensures reliable performance in various industrial environments. The use of compressed air also allows for easy integration with other pneumatic systems.

Corrosion ResistanceThe cylinder features a moderate corrosion resistance class (CRC 2) according to Festo standards, making it suitable for applications where moderate exposure to corrosive substances is expected. This ensures the longevity of the cylinder in harsh industrial conditions.

Position SensingThe ADVU-50-A-P-A-S2 supports position sensing via proximity switches, enabling precise control and monitoring of the cylinder's position. This feature is particularly useful in applications requiring accurate positioning, such as in robotics and automation.

Material QualityConstructed from high-quality materials including wrought aluminum alloy for the cover, high-alloy steel for the piston rod, and NBR/TPE-U(PU) for dynamic seals, the ADVU-50-A-P-A-S2 ensures durability and reliability in demanding industrial environments.

Operating Pressure RangeThe cylinder operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), providing flexibility in terms of operating conditions. This range allows the cylinder to be used in various applications, from low-pressure to high-pressure operations.

Ambient Temperature RangeThe ADVU-50-A-P-A-S2 operates within an ambient temperature range of -20°C to 80°C, making it suitable for use in a wide range of industrial environments. This temperature range ensures the cylinder's performance remains consistent in various temperature conditions.

1Impact EnergyThe cylinder has an impact energy of 0.64 J in the end positions, indicating its ability to withstand minor impacts without compromising its functionality. This feature is particularly important in applications where the cylinder may be subject to occasional shocks or vibrations.

1Theoretical ForceThe theoretical force at 6 bar (0.6 MPa) for both retracting and advancing strokes is 1057 N, providing a strong and reliable operation. This force ensures the cylinder can handle heavy loads and perform tasks efficiently.

Position sensing

For proximity sensor

Symbol

00991219

Variants

Through piston rod

Protection against torsion/guide

Square piston rod

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.64J

Theoretical force at 6 bar, retracting

1057N

Theoretical force at 6 bar, advancing

1057N

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

G1/8

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156156
