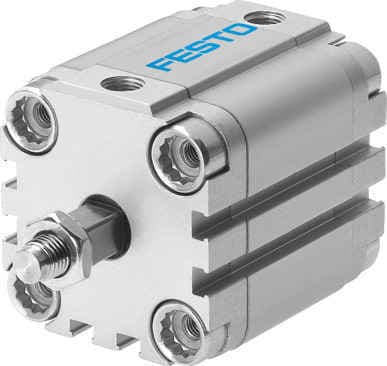

Festo ADVULQ-100- -A-P-A: Compact, double-acting pneumatic cylinder with elastic cushioning and optional mounting positions. Suitable for various industrial applications.
Product Modeladvulq-100- -a-p-a
Material Number156149
Product ID3472
Stock on Request
Last updated: 8/29/2026
Key Features
1
Compact DesignThe Festo ADVULQ-100- -A-P-A features a compact design, making it ideal for applications where space is limited. Its small footprint allows for efficient use of installation space.
2
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear on the piston and cylinder barrel.
3
Double-Acting OperationThe ADVULQ-100- -A-P-A operates in double-acting mode, allowing for both extension and retraction strokes with equal force. This versatility makes it suitable for a wide range of applications.
4
Optional Mounting PositionsThe cylinder offers optional mounting positions, providing flexibility in installation. This feature allows for easy integration into various mechanical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 400mm
Piston diameter
100 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
High-Quality MaterialsConstructed from high-quality materials such as wrought aluminum alloy for the cylinder barrel and cover, galvanized steel for the flange, and high-alloy steel for the piston rod, ensuring durability and resistance to corrosion.
6
Position DetectionThe cylinder is equipped with position detection via proximity switch, enabling precise control and monitoring of the cylinder's movement.
7
Operating Pressure RangeThe ADVULQ-100- -A-P-A operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), providing a wide range of operating pressures to suit various application requirements.
8
Corrosion ResistanceWith a corrosion resistance class of CRC 2, the cylinder can withstand moderate corrosion stress, making it suitable for use in environments with some level of corrosive exposure.
9
Ambient Temperature RangeThe cylinder operates within an ambient temperature range of -20°C to 80°C, ensuring reliable performance in a variety of temperature conditions.
10
Impact EnergyThe ADVULQ-100- -A-P-A has an impact energy of 1 J in the end positions, providing a controlled and safe operation even under impact conditions.
11
1Theoretical ForcesThe theoretical force at 0.6 MPa (6 bar, 87 psi) for both return and advance strokes is 4418 N and 4712 N respectively, indicating strong and consistent performance.
12
1Moving Mass and WeightThe moving mass for a 0 mm stroke is 614 g, with an additional moving mass of 38 g per 10 mm stroke. The basic weight for a 0 mm stroke is 2797 g, with an additional weight of 177 g per 10 mm stroke.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
