Short Product Description: Compact, double-acting pneumatic cylinder with elastic cushioning, oil lubrication, and proximity sensing for precise motion control.

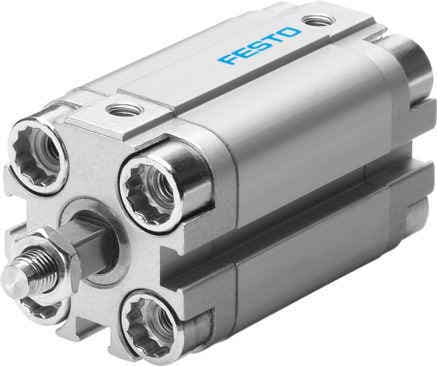

Product Modeladvulq-20- -a-p-a
Material Number156142
Product ID3465
Stock on Request
Last updated: 8/29/2026
Key Features
1
Compact DesignDescription: The ADVULQ-20-20-A-P-A boasts a compact design, reducing installation space by up to 50% compared to ISO cylinders, making it perfect for space-constrained applications.
2
Elastic CushioningDescription: Equipped with elastic cushioning at both ends, this cylinder ensures smooth operation and reduces wear and tear, extending its lifespan.
3
Position SensingDescription: The ADVULQ features a magnetic piston for position sensing, allowing for precise control and monitoring of the cylinder's movement.
4
Operational FlexibilityDescription: This cylinder can operate with oil lubrication, enhancing its performance and durability in demanding environments.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 200mm
Piston diameter
20 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
Customization OptionsDescription: The ADVULQ series offers a wide range of variants, including piston rods with internal or external threads, catering to diverse application needs.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
