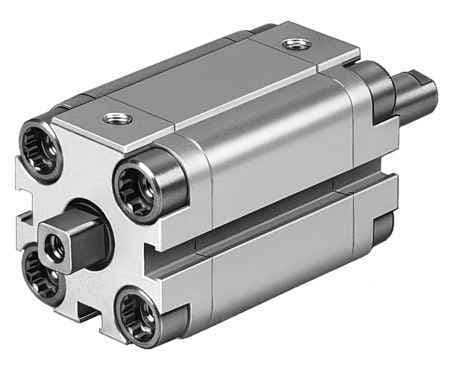

Compact DesignThe Festo ADVU-25-P-A-S2 is designed to be compact, making it perfect for space-constrained applications. Its small footprint allows for efficient use in a variety of settings.
2
Double-Acting OperationThis cylinder operates in both directions, providing flexibility and versatility in your automation setup. It can be used for both advancing and retracting movements.
3
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, the ADVU-25-P-A-S2 ensures smooth and controlled movements, reducing wear and tear on the cylinder and its components.
4
Optional MountingThe cylinder offers optional mounting positions, allowing for easy integration into your existing system. This flexibility makes it suitable for a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 200mm
Piston diameter
25 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
Internal thread
5
High-Quality MaterialsConstructed from high-quality materials such as high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, the ADVU-25-P-A-S2 ensures durability and resistance to corrosion.
6
Position DetectionThe cylinder is designed for position detection via proximity switches, providing accurate control over the movement of the piston rod. This feature enhances the precision and reliability of your automation system.
7
Operating Pressure RangeThe ADVU-25-P-A-S2 operates within a wide pressure range of 0.12 MPa to 1 MPa (1.2 bar to 10 bar), making it adaptable to various operating conditions and ensuring consistent performance.
8
Corrosion ResistanceWith a corrosion resistance class of CRC 2, the cylinder is designed to withstand moderate corrosion stress, ensuring long-term reliability in harsh environments.
9
Ambient Temperature RangeThe ADVU-25-P-A-S2 operates within an ambient temperature range of -20 °C to 80 °C, making it suitable for a variety of industrial settings.
10
Impact EnergyThe cylinder has an impact energy of 0.1 J in the end positions, providing a controlled and safe operation even under dynamic conditions.
11
1Theoretical ForceThe theoretical force at 6 bar (0.6 MPa) is 247 N for both advancing and retracting strokes, ensuring consistent performance and reliable operation.
12
1Pneumatic ConnectionThe cylinder features an M5 pneumatic connection, making it easy to integrate into your existing pneumatic system.
13
1Material CompatibilityThe ADVU-25-P-A-S2 is compatible with compressed air as per ISO 8573-1:2010 [7:4:4] and can operate with oil lubrication, which is required for further use to ensure smooth operation.
14
1LABS (PWIS) ConformityThe cylinder conforms to LABS (PWIS) standards, ensuring it meets the necessary safety and performance criteria for industrial applications.
15
1VDMA24364-B1/B2-L ConformityIt also conforms to VDMA24364-B1/B2-L standards, indicating its compliance with industry-specific regulations and guidelines.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991219
Variants
Through piston rod
Protection against torsion/guide
Square piston rod
Operating pressure
17.4psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
