Compact Design and VersatilityThe ADVU-16- -A-P-A-S6 is designed to be compact and versatile, making it suitable for a wide range of industrial applications. Its small size allows for easy integration into various systems.
2
Elastic Cushioning for Smooth OperationEquipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear on the piston and cylinder walls.
3
High Operating Pressure RangeThe cylinder operates within a wide pressure range of 0.12 MPa to 1 MPa (1.2 bar to 10 bar), providing flexibility in system design and operation.
4
Heat-Resistant SealsThe ADVU-16- -A-P-A-S6 features heat-resistant seals that can withstand temperatures up to 120°C, making it suitable for applications in hot environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 200mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Moderate Corrosion ResistanceWith a corrosion resistance class (CRC) of 2, this cylinder is designed to handle moderate corrosion stress, ensuring reliability in various industrial conditions.
6
Position Sensing CapabilityThe cylinder is compatible with proximity sensors, allowing for precise position detection and control in automated systems.
7
Double-Acting OperationThe ADVU-16- -A-P-A-S6 is designed for double-acting operation, enabling both retracting and advancing strokes, which enhances its versatility in different applications.
8
LABS (PWIS) ConformityThe cylinder conforms to LABS (PWIS) standards, ensuring compliance with industry-specific regulations and safety requirements.
9
Impact Energy ControlThe cylinder has an impact energy of 0.1 J in the end positions, which helps in controlling the force and preventing damage to the system.
10
Operating MediumCompressed Air
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Heat-resistant seals max. 120°C
Operating pressure
17.4psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
0°C 120°C
Impact energy in the end positions
0.1J
Theoretical force at 6 bar, retracting
90N
Theoretical force at 6 bar, advancing
121N
Moving mass at 0 mm stroke
12g
Additional moving mass per 10 mm stroke
4g
Basic weight with 0 mm stroke
89g
Additional weight per 10 mm stroke
15g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
High-alloy stainless steel
Cover material
Wrought aluminum alloy
Material of dynamic seals
FPM
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
156091

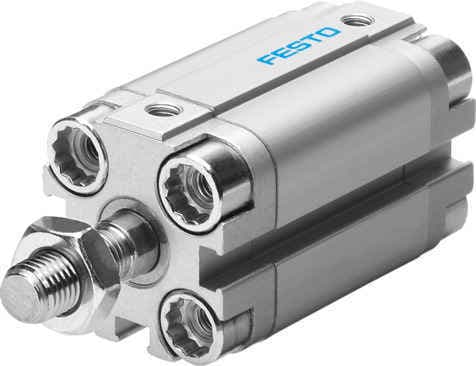

Festo ADVU-16- -A-P-A-S6 Compact Air Cylinder | INDSLT
