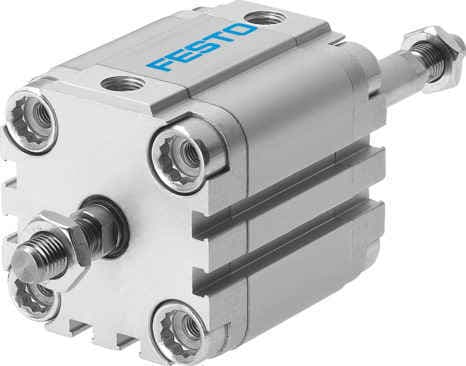

Festo ADVU-80-A-P-A-S2: High-performance compact cylinder with 1 to 400 mm stroke, flexible mounting, and reliable operation for various industrial applications.
Product Modeladvu-80- -a-p-a-s2
Material Number156058
Product ID3412
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Performance and ReliabilityThe Festo ADVU-80-A-P-A-S2 is engineered to deliver high performance and reliability, making it a top choice for demanding industrial applications. Its robust design ensures consistent operation under various conditions.
2
Flexible Mounting OptionsThis compact cylinder offers versatile mounting options, including through-holes and female threads, allowing for easy integration into diverse machinery setups. This flexibility enhances its usability across different industrial environments.
3
Wide Stroke RangeWith a stroke length of 1 to 400 mm, the Festo ADVU-80-A-P-A-S2 caters to a broad range of applications, from small-scale machinery to large industrial systems. This versatility makes it a valuable asset for various industries.
4
Position Sensing CapabilityEquipped with proximity sensing, the ADVU-80-A-P-A-S2 allows for precise position control, ensuring accurate and reliable operation. This feature is particularly useful in applications requiring precise movement control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 400mm
Piston diameter
80 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Compliance with Industry StandardsThe Festo ADVU-80-A-P-A-S2 conforms to ISO 1179-1 and ISO 228-1 standards, ensuring compatibility with a wide range of industrial systems and components. This compliance enhances its integration into existing infrastructure and ensures smooth operation.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991219
Variants
Through piston rod
Operating pressure
11.6psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.75J
Theoretical force at 6 bar, retracting
2827N
Theoretical force at 6 bar, advancing
2827N
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
G1/8
Flange screws material
Steel, galvanized
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
156058
