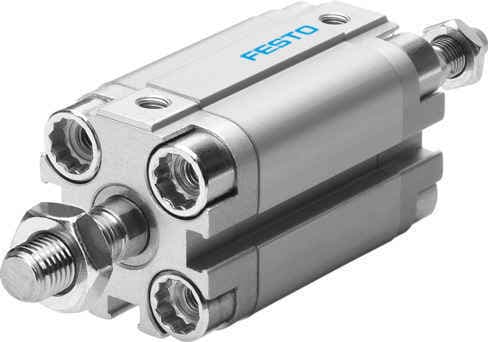

High Precision and ReliabilityThe Festo ADVU-25-5-A-P-A-S2 compact cylinder is engineered for high precision, ensuring consistent performance in various industrial applications. Its robust design and reliable components guarantee long-lasting operation.
2
Compact DesignDesigned to be compact, this cylinder fits seamlessly into tight spaces, making it perfect for applications where space is limited. Its compact size also reduces installation complexity.
3
Double-Acting CapabilityThe double-acting feature allows for both extension and retraction, providing greater flexibility in your automation processes. This capability enhances the efficiency of your operations by allowing for simultaneous actions.
4
Easy InstallationThe Festo ADVU-25-5-A-P-A-S2 is designed for easy installation. Its standardized connections and straightforward configuration make it simple to integrate into your existing systems, reducing setup time and costs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 200mm
Piston diameter
25 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Durable ConstructionConstructed with durable materials, this compact cylinder is built to withstand the demands of industrial environments. Its corrosion-resistant components ensure longevity and minimize maintenance needs, reducing downtime and operational costs.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991219
Variants
Through piston rod
Operating pressure
17.4psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
