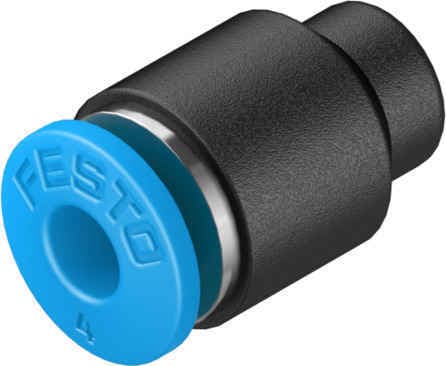

The Festo QSC-5/32-U push-in cap is a versatile and reliable component for pneumatic systems, offering easy installation and secure connections.
Product Modelqsc-5/32-u
Material Number153828
Product ID3325
Stock on Request
Last updated: 8/29/2026
Key Features
1
Easy InstallationThe Festo QSC-5/32-U push-in cap features a simple push-in design, making it quick and easy to install without the need for tools. This reduces downtime and enhances overall efficiency in your pneumatic system.
2
Reliable PerformanceDesigned with high-quality materials, the QSC-5/32-U ensures a secure and reliable connection in your pneumatic system. Its robust construction withstands various operating pressures, providing consistent performance.
3
Versatile ApplicationThe Festo QSC-5/32-U is compatible with a wide range of pneumatic applications, making it a versatile component for various industries. Whether you need to connect or disconnect pneumatic lines, this cap is the perfect solution.
4
Space-Saving DesignThe compact size of the Festo QSC-5/32-U push-in cap allows for efficient use of space in your pneumatic system. Its small footprint makes it ideal for applications where space is limited.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
2.3mm
Mounting position
Any
Design
Blanking plug
Pack size
1
Structural design
Push-pull principle
5
Durable ConstructionConstructed from high-quality plastic and polymer materials, the QSC-5/32-U is built to last. Its durable design ensures that it can withstand the rigors of continuous use in your pneumatic system, reducing the need for frequent replacements.
Operating pressure for entire temperature range
-13.775psi 145psi
Maritime classification
See certificate
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-10°C 60°C
Product weight
2.5g
Pneumatic connection 1
For pneumatic tubing outside diameter 5/32;
Ambient temperature Fahrenheit
14°F 140°F
Releasing ring color
Gray
Note on materials
RoHS-compliant
Housing material
PBT
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
153828
