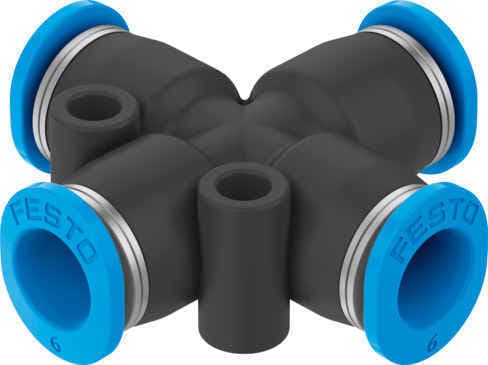

Name: qsmx-6
Brand: FESTO
SKU: qsmx-6

Short Product Description: The Festo QSMX-6 push-in X connector provides a compact and reliable pneumatic connection solution with a nominal size of 3.3 mm, operating pressures from -0.95 to 6 bar, and a durable design suitable for various automation tasks.

Product Modelqsmx-6

Material Number153380

Product ID3217

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact DesignThe Festo QSMX-6 features a mini nominal size of 3.3 mm, making it an ideal choice for applications where space is limited. Its compact design ensures efficient use of space without compromising on performance.
2
Reliable Operating PressureThe QSMX-6 supports operating pressures ranging from -0.95 to 6 bar, providing a stable and reliable connection for your pneumatic systems. This wide pressure range ensures the connector can handle various operating conditions.
3
Durable MaterialsConstructed from high-quality materials such as PBT for the housing, POM for the sleeve, and NBR for the tube seal, the QSMX-6 offers excellent durability and resistance to corrosion. The high-alloy stainless steel used for the hose clamping segment further enhances its durability.
4
Easy InstallationThe push-pull principle of the QSMX-6 makes installation easy and quick. The connector can be mounted in any position, providing flexibility in your setup. This feature reduces installation time and ensures a smooth operation.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Mini

Nominal width

3.3mm

Mounting position

Any

Design

X-shape

Pack size

Structural design

Push-pull principle

Compliance with StandardsThe Festo QSMX-6 is designed to meet the standards of ISO 8573-1:2010 for compressed air quality. It also conforms to VDMA24364-B1/B2-L, ensuring it meets the necessary safety and performance criteria for pneumatic systems.

Maritime ClassificationThe QSMX-6 has been classified for maritime use, making it suitable for applications in harsh marine environments. This classification ensures the connector can withstand the unique challenges of marine settings, such as high humidity and salt exposure.

Corrosion ResistanceWith a corrosion resistance class of CRC 1, the QSMX-6 exhibits low corrosion stress, making it suitable for applications in environments where moisture or chemicals are present. This feature extends the lifespan of the connector and ensures consistent performance over time.

Operating MediumThe QSMX-6 is designed to operate with compressed air, which is essential for many industrial automation tasks. Its compatibility with lubricated operation also enhances its performance and longevity by reducing wear and tear on the connector.

Ambient Temperature RangeThe connector operates within an ambient temperature range of -10°C to 80°C, making it suitable for a wide range of applications. This temperature range ensures the connector performs optimally in various environmental conditions.

Product Weight and PackagingThe QSMX-6 weighs 5 grams and comes in packs of 10 units. This packaging makes it easy to manage and store, ensuring you have the right number of connectors for your projects without unnecessary bulk.

1Color CodingThe release ring of the QSMX-6 is colored blue, providing a clear visual indication of the connector's status. This color coding helps in quick identification and reduces the risk of incorrect connections.

1RoHS ComplianceThe Festo QSMX-6 is RoHS compliant, ensuring it meets the environmental regulations related to the use of hazardous substances in electrical and electronic equipment. This compliance aligns with the industry's commitment to sustainability and environmental protection.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-]

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 80°C

Product weight

No. of outlets

No. of supply lines

Pneumatic connection 1

For pneumatic tubing outside diameter 6 mm

Pneumatic connection 2

for pneumatic tubing outside diameter 6 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153380
