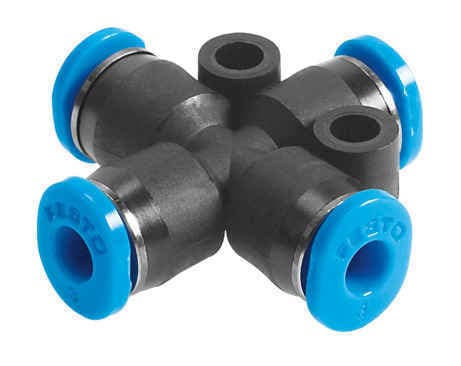

The Festo QSMX-3 Push-in X-Connector is a versatile and reliable solution for pneumatic applications, offering high-pressure compatibility and ease of installation.
Product Modelqsmx-3
Material Number153378
Product ID3216
Stock on Request
Last updated: 8/29/2026
Key Features
1
High-Pressure CompatibilityThe Festo QSMX-3 Push-in X-Connector is designed to handle pressures up to 16 bar, making it ideal for demanding pneumatic applications.
2
Temperature RangeThis connector operates effectively within a temperature range of up to 70°C, ensuring reliable performance in various environments.
3
Ease of InstallationThe push-in design simplifies the connection process, reducing installation time and effort. The connector is easy to use, even in tight spaces.
4
Versatile Tubing CompatibilityThe QSMX-3 is compatible with tubing O.D.s of 3 mm, 4 mm, and 6 mm, providing flexibility for different pneumatic system configurations.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Mini
Nominal width
1.7mm
Mounting position
Any
Design
X-shape
Pack size
10
Structural design
Push-pull principle
Durable ConstructionMade from high-quality materials, the Festo QSMX-3 Push-in X-Connector offers excellent abrasion resistance and durability, ensuring long-lasting performance in dynamic applications.
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-10°C 80°C
Product weight
4g
No. of outlets
3
No. of supply lines
1
Pneumatic connection 1
for pneumatic tubing outside diameter 3 mm
Pneumatic connection 2
for pneumatic tubing outside diameter 3 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Housing material
PBT
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
153378
