qsq-1/4-6

Name: qsq-1/4-6
Brand: FESTO
SKU: qsq-1/4-6

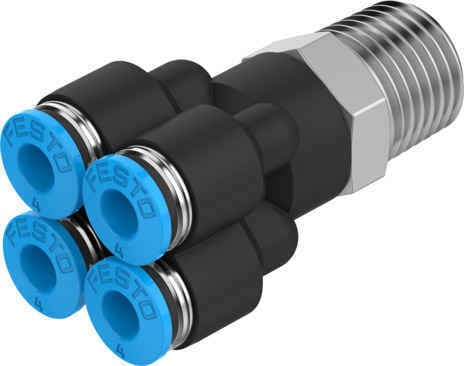

The Festo QSQ-1/4-6 multiple distributor provides reliable air distribution with a push-pull principle. Ideal for industrial applications, it ensures high performance and durability.

Product Modelqsq-1/4-6

Material Number153288

Product ID3130

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Reliable Air DistributionThe Festo QSQ-1/4-6 is designed to deliver precise and consistent air distribution, ensuring that your pneumatic system operates efficiently.
2
Push-Pull PrincipleThe product features a user-friendly push-pull principle, making it easy to install and maintain. This design ensures minimal downtime and maximum productivity.
3
High DurabilityConstructed with high-quality materials, the QSQ-1/4-6 is built to withstand the demands of industrial environments. Its robust design ensures long-lasting performance.
4
Versatile ApplicationsSuitable for a wide range of industrial applications, the Festo QSQ-1/4-6 can be used in various settings, from manufacturing to automation. Its versatility makes it a valuable addition to any pneumatic system.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

5.2mm

Type of seal on screwed plug

Coating

Mounting position

Any

Structural design

Push-pull principle

Pack size

Easy InstallationThe Festo QSQ-1/4-6 is designed for easy installation. Its standard size of 5.2 mm and optional mounting positions make it simple to integrate into existing systems, reducing setup time and costs.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at 0 - 50 °C

Maritime classification

See certificate

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 80°C

Product weight

30g

No. of outlets

No. of supply lines

Pneumatic connection 1

External thread R1/4

Pneumatic connection 2

for pneumatic tubing outside diameter 6 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153288
