qsx-10

Name: qsx-10
Brand: FESTO
SKU: qsx-10

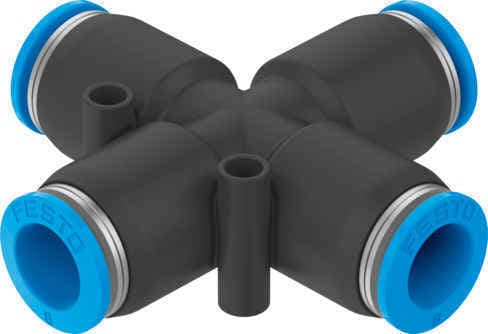

The Festo QSX-10 Push-in X Connector is a reliable and efficient pneumatic connector designed with an X-shape for easy installation. It features a standard 6.1mm nominal size and operates with a push-pull principle, making it perfect for various pneumatic systems.

Product Modelqsx-10

Material Number153286

Product ID3129

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Standard Size and DesignThe QSX-10 features a standard 6.1mm nominal size, ensuring compatibility with most pneumatic systems. Its X-shape design provides a secure and stable connection.
2
Easy InstallationThe push-pull principle of the QSX-10 makes installation quick and straightforward, reducing downtime and increasing productivity.
3
Reliability and EfficiencyDesigned with a robust structural design, the QSX-10 ensures reliable performance in various pneumatic applications. Its efficient operation minimizes energy consumption and maximizes system performance.
4
Versatile Mounting OptionsThe QSX-10 offers flexible mounting options, allowing for installation in any position, making it adaptable to different system configurations.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

6.1mm

Mounting position

Any

Design

X-shape

Pack size

Structural design

Push-pull principle

Pack Size ConvenienceAvailable in packs of 10, the QSX-10 is convenient for bulk purchases, ensuring you have the necessary connectors on hand for your projects.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Product weight

32g

No. of outlets

No. of supply lines

Pneumatic connection 1

for pneumatic tubing outside diameter 10 mm

Pneumatic connection 2

for pneumatic tubing outside diameter 10 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153286
