qsx-8

Name: qsx-8
Brand: FESTO
SKU: qsx-8

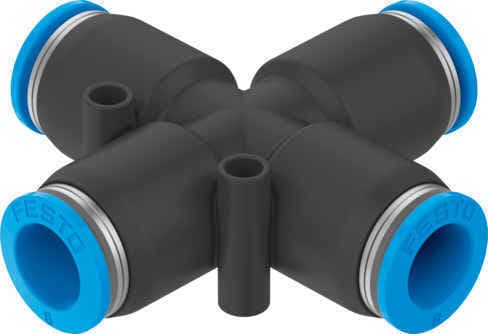

The Festo QSX-8 Push-in X Connector is designed for 8mm tubing, providing a secure and efficient pneumatic connection. Ideal for various industrial applications, it ensures reliability and ease of use.

Product Modelqsx-8

Material Number153285

Product ID3128

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Secure ConnectionThe Festo QSX-8 Push-in X Connector offers a reliable and secure connection for pneumatic lines, ensuring that your system operates smoothly and efficiently.
2
Easy InstallationWith its push-in design, the QSX-8 connector is easy to install, reducing setup time and minimizing the risk of errors.
3
Versatile ApplicationSuitable for various industrial applications, the QSX-8 connector is versatile and can be used in a wide range of pneumatic systems.
4
High-Quality MaterialsConstructed from high-quality materials, the QSX-8 connector is durable and resistant to wear and tear, ensuring long-lasting performance.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

4.7mm

Mounting position

Any

Design

X-shape

Pack size

Structural design

Push-pull principle

Efficient OperationThe QSX-8 connector is designed to provide efficient pneumatic connections, reducing pressure drops and ensuring optimal system performance.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Product weight

20g

No. of outlets

No. of supply lines

Pneumatic connection 1

for pneumatic tubing outside diameter 8 mm

Pneumatic connection 2

for pneumatic tubing outside diameter 8 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153285
