qsc-6

Name: qsc-6
Brand: FESTO
SKU: qsc-6

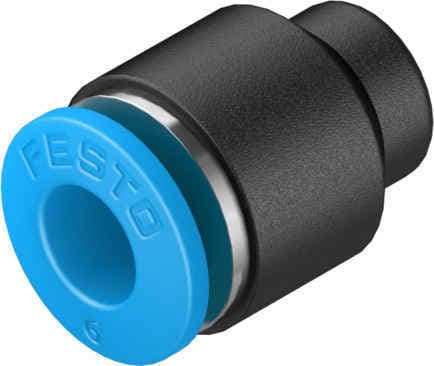

The Festo QSC-6 push-in cap is a standard, versatile cap designed for 6mm tubing. It operates within -0.95 to 6 bar and supports lubricated operation, making it ideal for various pneumatic applications.

Product Modelqsc-6

Material Number153263

Product ID3110

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Versatile InstallationThe QSC-6 push-in cap can be installed in any position, providing flexibility in system design and installation.
2
Wide Operating Pressure RangeIt operates effectively within a temperature-dependent pressure range of -0.95 to 14 bar, ensuring reliable performance in diverse conditions.
3
Corrosion ResistanceClassified as CRC 1, the cap exhibits low corrosion stress, making it suitable for use in environments with moderate chemical exposure.
4
Material ComplianceConforms to RoHS standards, ensuring environmental sustainability and compliance with regulatory requirements.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Mounting position

Any

Design

Blanking plug

Pack size

Structural design

Push-pull principle

Operating pressure for entire temperature range

-13.775psi 87psi

Durable ConstructionMade from PBT housing and POM release ring, along with NBR tube seal and high-alloy steel tube retaining claw, the cap offers robust durability and reliability.

Maritime ClassificationThe cap is suitable for maritime applications, with specific maritime classification details available upon request.

Easy OperationDesigned with a push-pull principle, the cap provides easy and secure connection and disconnection of pneumatic tubing.

Operating Medium CompatibilityCompatible with compressed air (ISO 8573-1:2010) and water (as per manufacturer’s declaration), making it versatile for different pneumatic and hydraulic applications.

Ambient Temperature RangeOperates within an ambient temperature range of -10 to 80°C, ensuring reliable performance in various environmental conditions.

Packaging ConvenienceAvailable in packs of 10, making it convenient for bulk purchases and inventory management.

Temperature-dependent operating pressure

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Product weight

3.5g

Pneumatic connection 1

For pneumatic tubing outside diameter 6 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153263
