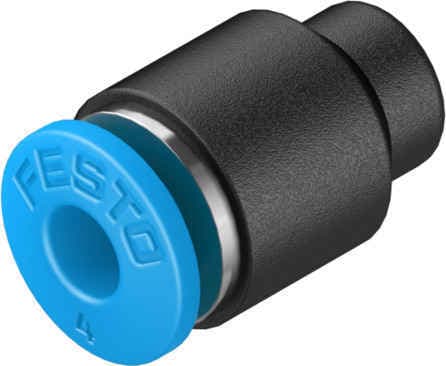

qsc-4

Name: qsc-4
Brand: FESTO
SKU: qsc-4

The Festo QSC-4-100 push-in cap is a standard series fitting with a push-pull principle, suitable for compressed air and water, and operating within -0.95 to 6 bar. It features low corrosion stress and a temperature range of -10°C to 80°C.

Product Modelqsc-4

Material Number153262

Product ID3109

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Versatile DesignThe Festo QSC-4-100 push-in cap features a versatile design with a push-pull principle, allowing for easy installation and operation in various applications.
2
Reliable PerformanceDesigned to operate within a wide pressure range of -0.95 to 6 bar, ensuring reliable performance in standard pneumatic systems.
3
CompatibilityCompatible with both compressed air and water, making it suitable for a wide range of industrial applications.
4
Low Corrosion StressThe QSC-4-100 has a low corrosion stress classification (CRC 1), ensuring it can withstand harsh environments with minimal degradation.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Mounting position

Any

Design

Blanking plug

Pack size

Structural design

Push-pull principle

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature FlexibilityOperating within a temperature range of -10°C to 80°C, this push-in cap is adaptable to various ambient conditions, making it a versatile choice for different industrial settings.

Material ComplianceConforms to RoHS standards, ensuring the product is environmentally friendly and meets regulatory requirements. The housing is made of PBT, the release ring of POM, and the tubing seal of NBR, with a high-alloy stainless steel tube retaining claw for added durability.

Temperature-dependent operating pressure

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Product weight

2.5g

Pneumatic connection 1

for pneumatic tubing outside diameter 4 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153262
