qss-10

Name: qss-10
Brand: FESTO
SKU: qss-10

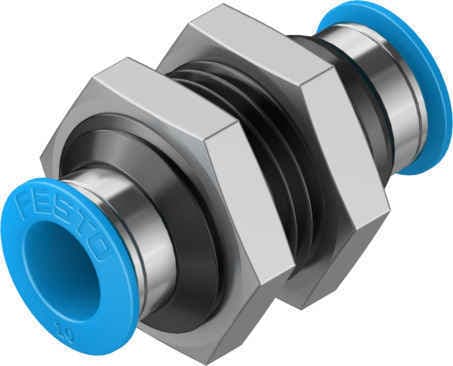

The Festo QSS-10 is a reliable push-in bulkhead connector designed for pneumatic systems. It features a durable brass nickel-plated body, NBR tubing seal, and a polyoxymethylene (POM) releasing ring. Ideal for compressed air applications, this fitting ensures high-level abrasion resistance and easy installation.

Product Modelqss-10

Material Number153160

Product ID3007

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Durable ConstructionThe QSS-10 is built with a brass nickel-plated body, ensuring high corrosion resistance and durability in various operating conditions.
2
Easy InstallationThe push-in design allows for quick and easy installation, reducing setup time and increasing efficiency in your pneumatic system.
3
High Abrasion ResistanceEquipped with a polyoxymethylene (POM) releasing ring, this fitting provides excellent abrasion resistance, making it suitable for dynamic applications.
4
Temperature and Pressure RangeThe QSS-10 operates within a wide temperature range (-10°C to 80°C) and supports pressures up to 14 bar, making it versatile for various pneumatic tasks.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

9mm

Mounting position

Any

Design

Bulkhead

Pack size

Structural design

Push-pull principle

Compliance and CompatibilityMeets ISO 8573-1:2010 standards and is compatible with PEN, PUN, and PAN series pneumatic systems, ensuring seamless integration into your existing setup.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Product weight

35g

Type of mounting

External hexagon, AF 24

Pneumatic connection 1

for pneumatic tubing outside diameter 10 mm

Pneumatic connection 2

for pneumatic tubing outside diameter 10 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

Aluminum, anodized

Releasing ring material

POM

Nut material

Brass, nickel-plated

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153160
