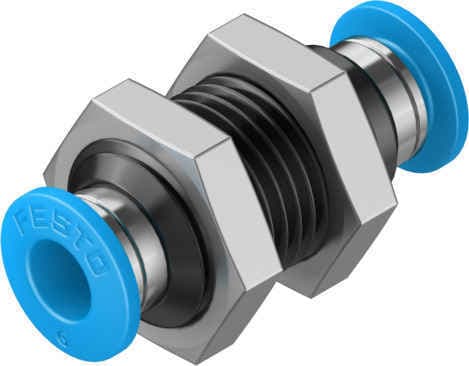

Easy InstallationThe QSS-6 connector uses a push-pull principle, making it simple to install and remove without the need for tools, reducing installation time and increasing efficiency.
2
Reliable ConnectionDesigned with a robust structural principle, the QSS-6 ensures a secure and reliable connection, minimizing the risk of leaks and ensuring consistent performance.
3
Versatile ApplicationsSuitable for a wide range of compressed air and vacuum applications, the QSS-6 is versatile and can be used in various industries, including manufacturing and automation.
4
Standard SizeAvailable in a standard nominal size of 5 mm, the QSS-6 is designed to fit seamlessly into existing systems, reducing the need for custom fittings and ensuring compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
5mm
Mounting position
Any
Design
Bulkhead
Pack size
10
Structural design
Push-pull principle
5
High Operating PressureThe QSS-6 can handle high operating pressures, making it suitable for demanding applications where reliability and performance are crucial. This ensures that your pneumatic system operates efficiently under pressure.
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
