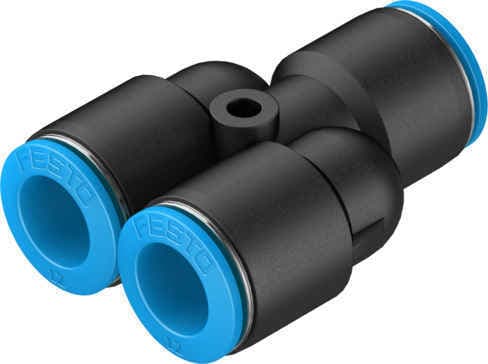

Reliable ConnectionThe Festo QSY-12 features a push-pull principle for easy and secure connections, ensuring minimal risk of leakage and optimal system performance.
2
Low Corrosion ResistanceConstructed from PBT and POM materials, this fitting offers a low corrosion resistance classification (CRC 1), making it suitable for various industrial environments.
3
Wide Operating Temperature RangeThe QSY-12 operates effectively within a temperature range of -10°C to 80°C, accommodating diverse application conditions.
4
Efficient Operation with Compressed Air and WaterDesigned to handle compressed air in accordance with ISO 8573-1:2010 and water as per manufacturer’s declaration, this fitting ensures reliable operation in both mediums.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
8mm
Mounting position
Any
Design
Y-shape
Pack size
10
Structural design
Push-pull principle
5
Easy Installation and MaintenanceThe push-in design allows for quick and effortless installation, reducing downtime and increasing productivity in your pneumatic system.
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-10°C 80°C
Product weight
37g
No. of outlets
2
No. of supply lines
1
Pneumatic connection 1
for pneumatic tubing outside diameter 12 mm
Pneumatic connection 2
for pneumatic tubing outside diameter 12 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Housing material
PBT
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
153152
