qsy-6

Name: qsy-6
Brand: FESTO
SKU: qsy-6

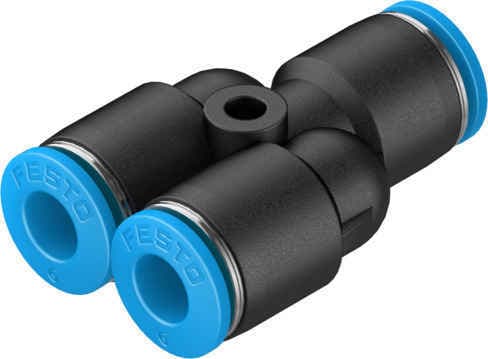

The Festo QSY-6 push-in Y-connector is a standard, 3.6 mm nominal size fitting designed for any assembly position. It operates within a temperature range of -10°C to 80°C and is suitable for compressed air applications.

Product Modelqsy-6

Material Number153149

Product ID2997

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Efficient ConnectionThe QSY-6 features a push/pull principle, making it easy to assemble and disassemble without the need for tools.
2
Standard SizeWith a nominal size of 3.6 mm, this connector fits standard pneumatic tubing, ensuring compatibility with a wide range of applications.
3
Corrosion ResistanceClassified as CRC 1, the QSY-6 exhibits low corrosion stress, ensuring durability in various environments.
4
Temperature RangeOperating within a temperature range of -10°C to 80°C, this connector is versatile and can be used in a variety of conditions.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

4.3mm

Mounting position

Any

Design

Y-shape

Pack size

Structural design

Push-pull principle

Operating PressureDesigned to handle operating pressures of up to 6 bar, the QSY-6 is suitable for a range of pneumatic applications, including those requiring high pressure.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 80°C

Product weight

11g

No. of outlets

No. of supply lines

Pneumatic connection 1

For pneumatic tubing outside diameter 6 mm

Pneumatic connection 2

for pneumatic tubing outside diameter 6 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153149
