qst-10-8

Name: qst-10-8
Brand: FESTO
SKU: qst-10-8

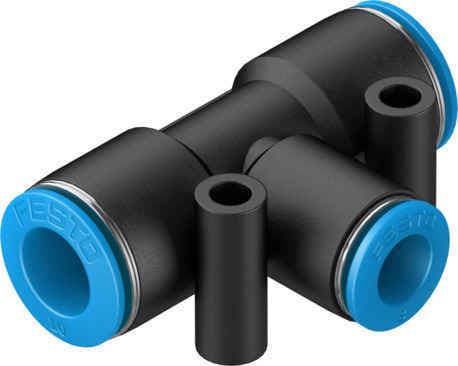

The Festo QST-10-8 is a push-in T-connector suitable for compressed air and water applications. It features a standard size of 4.9 mm, operating pressure up to 6 bar, and a temperature range of -10 to 80°C. Easy to install with its optimized bending radius and highly resistant materials.

Product Modelqst-10-8

Material Number153136

Product ID2984

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Versatile DesignThe Festo QST-10-8 is designed to fit any assembly position, making it versatile for various pneumatic tasks.
2
High Operating PressureIt operates at pressures up to 6 bar, making it suitable for demanding applications.
3
Temperature RangeThe connector can handle temperatures from -10 to 80°C, ensuring reliable performance in diverse environments.
4
Easy InstallationThe push-pull principle and optimized bending radius make installation quick and effortless.
5
Durable Materials

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

4.9mm

Mounting position

Any

Design

T-shape

Pack size

Structural design

Push-pull principle

Constructed with a PBT body and NBR tubing seal, the QST-10-8 offers high abrasion resistance and durability in dynamic applications.

Corrosion ResistanceClassified as CRC 1, the QST-10-8 has low corrosion stress, ensuring long-term reliability in various environments.

Maritime CompatibilityThe product is maritime classified, making it suitable for use in marine environments.

Compliance with StandardsMeets ISO 8573-1:2010 standards for compressed air quality and is compliant with RoHS regulations.

Operation with LubricationThe QST-10-8 allows for lubricated operation, enhancing its performance and longevity.

Attractive PricingThe Festo QST-10-8 is attractively priced, offering excellent value for its quality and functionality.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-10°C 80°C

Product weight

23g

No. of outlets

No. of supply lines

Pneumatic connection 1

for pneumatic tubing outside diameter 10 mm

Pneumatic connection 2

for pneumatic tubing outside diameter 8 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153136
