qst-10

Name: qst-10
Brand: FESTO
SKU: qst-10

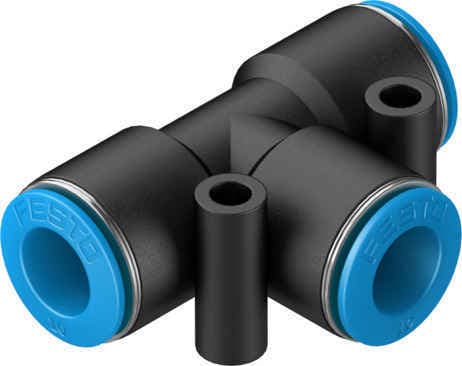

The Festo QST-10-8 push-in T-connector is a high-quality, T-shaped fitting designed for pneumatic systems. It offers 1 inlet and 2 outlets, ensuring efficient air flow management. Made from durable materials like PBT and stainless steel, this connector is ideal for applications requiring high pressure and temperature stability.

Product Modelqst-10

Material Number153131

Product ID2979

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Versatile DesignThe Festo QST-10-8 features a T-shape design with 1 inlet and 2 outlets, making it suitable for a wide range of pneumatic applications.
2
High Pressure and Temperature ResistanceThis connector operates within a pressure range of -0.95 to 6 bar and an ambient temperature range of -10 to 80°C, ensuring reliability in various conditions.
3
Easy InstallationThe push-pull design of the QST-10-8 makes it easy to install, reducing installation time and effort.
4
Durable MaterialsConstructed from high-quality materials such as polybutylene terephthalate (PBT) and stainless steel, this connector offers excellent durability and corrosion resistance.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

8.1mm

Mounting position

Any

Design

T-shape

Pack size

Structural design

Push-pull principle

Compliance with StandardsThe Festo QST-10-8 meets ISO 8573-1-2010 standards, ensuring compliance with industry regulations and standards for pneumatic fittings.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Product weight

25g

No. of outlets

No. of supply lines

Pneumatic connection 1

for pneumatic tubing outside diameter 10 mm

Pneumatic connection 2

for pneumatic tubing outside diameter 10 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153131
