qstl-1/2-16

Name: qstl-1/2-16
Brand: FESTO
SKU: qstl-1/2-16

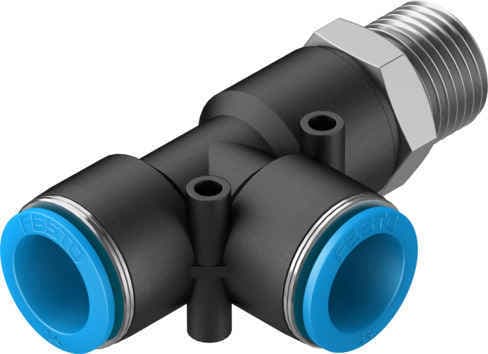

The Festo QSTL-1/2-16 push-in T-fitting ensures secure and efficient pneumatic connections. Its orientable male thread and durable construction make it suitable for a wide range of applications.

Product Modelqstl-1/2-16

Material Number153127

Product ID2975

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Orientable Male ThreadThe QSTL-1/2-16 features an orientable male thread, allowing for easy installation and flexibility in mounting positions.
2
Durable ConstructionBuilt with high-quality materials, this T-fitting is designed to withstand various operating pressures and temperatures, ensuring long-lasting performance.
3
Push-in ConnectorThe push-in connector design simplifies the connection process, reducing the risk of leaks and improving overall system reliability.
4
Compliant with StandardsThe QSTL-1/2-16 meets ISO 8573-1:2010 standards for compressed air quality, ensuring it is suitable for use in a variety of pneumatic systems.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

13mm

Type of seal on screwed plug

Coating

Mounting position

Any

Design

L-shape, additional push-in connector, lengthwise

Pack size

Versatile ApplicationThis T-fitting is suitable for a wide range of applications, including pneumatic tubing outside diameters of 16 mm, making it a versatile component for various industrial setups.

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Nominal tightening torque

26Nm

Tolerance for nominal tightening torque

± 20%

Product weight

93g

No. of outlets

No. of supply lines

Type of mounting

External hexagon, AF 22

Pneumatic connection 1

External thread R1/2

Pneumatic connection 2

for pneumatic tubing outside diameter 16 mm

Releasing ring color

Blue

Material of screwed plug

Brass, nickel-plated

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

153127
