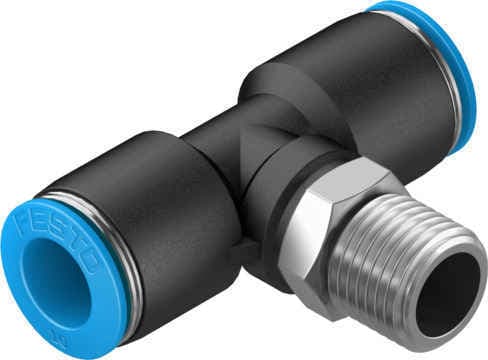

Quick and easy pneumatic connections with the Festo QST-1/4-10 push-in T-fitting. Ideal for various industrial applications, ensuring reliable and efficient pneumatic systems.
Product Modelqst-1/4-10
Material Number153112
Product ID2960
Stock on Request
Last updated: 8/29/2026
Key Features
1
Quick and Easy InstallationThe Festo QST-1/4-10 push-in T-fitting allows for rapid connection and disconnection of pneumatic tubing, reducing downtime and increasing productivity.
2
Reliable SealingEquipped with a PTFE-coated thread, this fitting ensures a secure seal, preventing leaks and maintaining system integrity.
3
Versatile ApplicationSuitable for a wide range of industrial applications, including manufacturing, automation, and robotics, where quick and reliable pneumatic connections are crucial.
4
Rotatable DesignThe T-shaped design allows for easy rotation, making it easier to connect and disconnect tubing without compromising the seal.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
8mm
Type of seal on screwed plug
Coating
Mounting position
Any
Design
T-shape
Pack size
10
High-Quality MaterialConstructed from high-quality materials, the Festo QST-1/4-10 push-in T-fitting is durable and resistant to wear and tear, ensuring long-lasting performance in demanding environments.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Ambient temperature
-10°C 80°C
Nominal tightening torque
9Nm
Tolerance for nominal tightening torque
± 20%
Product weight
31g
No. of outlets
2
No. of supply lines
1
Type of mounting
External hexagon, AF 14
Pneumatic connection 1
External thread R1/4
Pneumatic connection 2
for pneumatic tubing outside diameter 10 mm
Releasing ring color
Blue
Material of screwed plug
Brass, nickel-plated
Note on materials
RoHS-compliant
Housing material
PBT
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
153112
