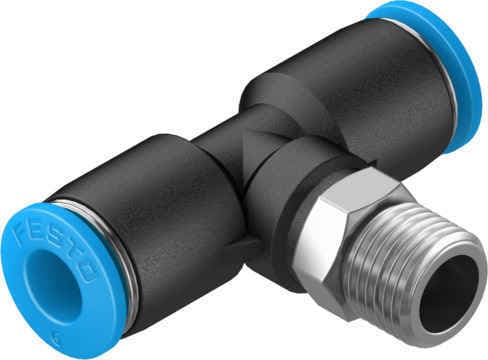

Festo QST-1/8-6 push-in T-fitting provides a secure and orientable connection for pneumatic tubing with an external hex male thread, ensuring efficient pneumatic systems.
Product Modelqst-1/8-6
Material Number153107
Product ID2955
Stock on Request
Last updated: 8/29/2026
Key Features
1
Orientable ConnectionThe Festo QST-1/8-6 push-in T-fitting features an orientable design, allowing for easy installation and alignment, reducing the risk of misconnection.
2
External Hex Male ThreadEquipped with an external hex male thread, this fitting provides a secure and easy-to-use connection for pneumatic tubing, ensuring reliable operation.
3
High-Quality MaterialsConstructed from high-quality PBT housing material, the QST-1/8-6 is durable and resistant to various operating conditions, including high and low temperatures.
4
Efficient Pneumatic SystemsDesigned for efficient pneumatic systems, the QST-1/8-6 ensures smooth airflow and minimal pressure loss, making it ideal for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
4.2mm
Type of seal on screwed plug
Coating
Mounting position
Any
Design
T-shape
Pack size
10
5
Compliant with Industry StandardsCompliant with ISO 8573-1:2010 standards for compressed air and manufacturer's declaration for water usage, ensuring the QST-1/8-6 meets stringent industry requirements.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
