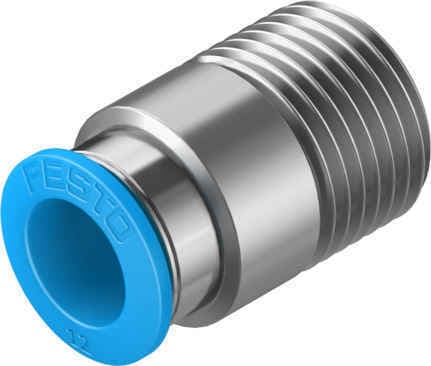

Highly resistant to corrosion, the Festo QS-1/2-12-I push-in fitting provides reliable pneumatic connections for compressed air and vacuum applications.
Product Modelqs-1/2-12-i
Material Number153021
Product ID2869
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Corrosion ResistanceThe QS-1/2-12-I is made from chemically nickel-plated brass, ensuring high corrosion resistance (CRC 3) and chemical resistance, making it suitable for demanding industrial environments.
2
Self-Sealing ThreadsEquipped with self-sealing PTFE-coated threads, this fitting can be reused up to five times without the need for additional sealing components, reducing maintenance and downtime.
3
Rotatable DesignThe fitting is rotatable, allowing for easy installation and minimizing the risk of damage to the tubing. The stainless steel retaining claw securely holds the tubing without damaging its surface.
4
Wide Temperature RangeSuitable for pneumatic applications with a temperature range up to 80°C, making it versatile for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
8.4mm
Type of seal on screwed plug
Coating
Mounting position
Any
Design
Straight design
Pack size
1
5
Compact and ReliableDesigned for maximum component density in confined spaces, the QS-1/2-12-I push-in fitting provides reliable connections with a nominal tightening torque of up to 10 Nm, ensuring secure operation in high-pressure applications.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-10°C 80°C
Nominal tightening torque
26Nm
Tolerance for nominal tightening torque
± 20%
Product weight
45g
Type of mounting
Internal hexagon, AF 8
Pneumatic connection 1
External thread R1/2
Pneumatic connection 2
for pneumatic tubing outside diameter 12 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Housing material
Brass, nickel-plated
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
153021
