Efficient pneumatic connection for compressed air and water, featuring a straight design and low corrosion stress.

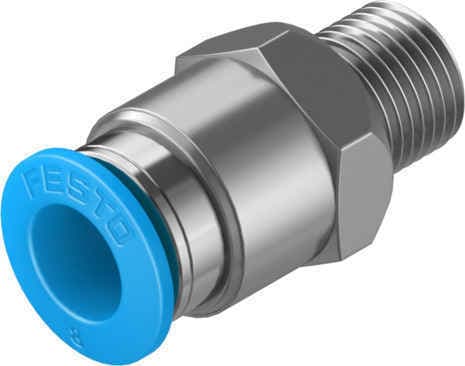

Product Modelqs-1/8-8
Material Number153004
Product ID2852
Stock on Request
Last updated: 8/29/2026
Key Features
1
Efficient DesignThe Festo QS-1/8-8 push-in fitting boasts a straight design, ensuring easy installation and minimal space requirements, making it ideal for compact systems.
2
Reliable SealingEquipped with a high-quality seal, this fitting provides a secure connection, minimizing the risk of leaks and ensuring consistent performance.
3
Wide Operating RangeThe fitting operates effectively within a wide temperature range of -10°C to 80°C and supports pressures up to 6 bar, making it versatile for various industrial applications.
4
Low Corrosion StressWith a corrosion resistance class of CRC 1, this fitting is designed to withstand low corrosion stress, ensuring durability and longevity in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
6mm
Type of seal on screwed plug
Coating
Mounting position
Any
Design
Straight design
Pack size
10
5
Easy InstallationFeaturing an internal hexagon mounting option, the QS-1/8-8 push-in fitting is easy to install and maintain, reducing downtime and increasing overall efficiency.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
