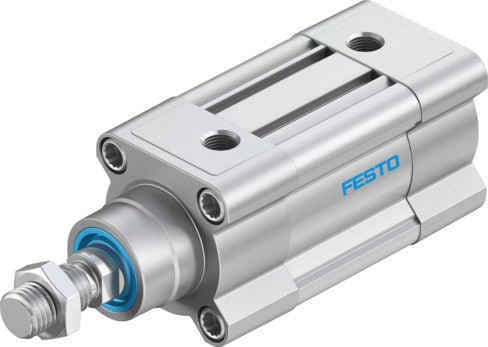

Festo DSBC-50- -PPSA-N3: High-performance pneumatic cylinder with self-adjusting end-position cushioning, double-acting operation, and a wide stroke range from 1 mm to 2800 mm.
Product Modeldsbc-50- -ppsa-n3
Material Number1463768
Product ID2168
Stock on Request
Last updated: 8/29/2026
Key Features
1
High-Performance DesignThe Festo DSBC-50- -PPSA-N3 is engineered to provide exceptional performance in a variety of applications. Its robust construction ensures reliable operation under diverse conditions.
2
Wide Stroke RangeAvailable in a wide range of stroke lengths from 1 mm to 2800 mm, this cylinder can be tailored to meet the specific needs of your project, offering flexibility in design and implementation.
3
Self-Adjusting CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder ensures smooth and controlled movements, reducing wear and tear on the system.
4
Double-Acting OperationDesigned for double-acting operation, the DSBC-50- -PPSA-N3 can handle both retracting and advancing strokes, making it versatile for a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 2800mm
Piston diameter
50 mm
Piston rod thread
M16x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
Compliance with ISO StandardsConforming to ISO 15552 standards, this cylinder ensures compatibility and reliability in international applications, making it a trusted choice for global projects.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 6 according to ISO 14644-1
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1J
Cushioning length
22mm
Theoretical force at 6 bar, retracting
990N
Theoretical force at 6 bar, advancing
1178N
Moving mass at 0 mm stroke
365g
Additional moving mass per 10 mm stroke
25g
Basic weight with 0 mm stroke
1190g
Additional weight per 10 mm stroke
56g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G1/4
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Material of bearing
POM
Flange screws material
Steel, galvanized
Manufacturer ID
1463768
