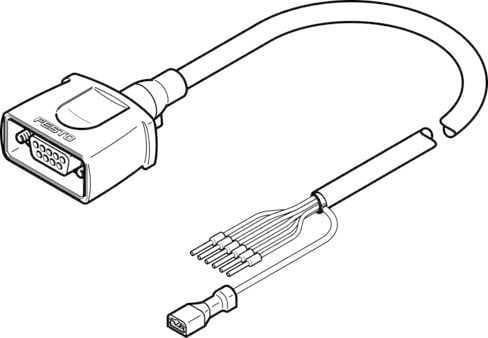

The Festo NEBM-S1G9-E-5-Q5-LE6 motor cable is a high-quality, precision-engineered component for servo drives. Discontinued; use modern alternatives for new designs.
Product Modelnebm-s1g9-e-5-q5-le6
Material Number1450370
Product ID2129
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precision EngineeringDesigned with precision engineering, the NEBM-S1G9-E-5-Q5-LE6 motor cable ensures reliable performance in servo drive applications.
2
High-Quality MaterialsConstructed from high-quality materials, this cable offers durability and resistance to wear and tear, ensuring extended service life.
3
Optimized PerformanceEngineered to optimize performance, the NEBM-S1G9-E-5-Q5-LE6 motor cable provides smooth and efficient operation in various industrial settings.
4
CompatibilitySpecifically designed for use with Festo servo drives, this cable ensures seamless integration and compatibility, reducing the risk of compatibility issues.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Cable designation
Without label holder
Electrical connection 1, function
Field device end
Electrical connection 1, design
Rectangular
Electrical connection 1, connection type
Socket
Electrical connection 1, cable outlet
Straight
Electrical connection 1, connection technology
Sub-D
Modern Alternatives AvailableAlthough the NEBM-S1G9-E-5-Q5-LE6 is being phased out, Festo offers modern alternatives that provide enhanced features and improved performance, ensuring you stay ahead in your automation needs.
Electrical connection 1, number of pins/wires
9
Electrical connection 1, occupied pins/wires
6
Electrical connection for input 1, connection pattern
00995638
Electrical connection 2, function
Control side
Electrical connection 2, connection type
Cable
Electrical connection 2, connection technology
Open end
Electrical connection 2, number of pins/wires
6
Electrical connection 2, occupied pins/wires
6
DC operating voltage range
0V 72V
Nominal operating voltage DC
24V
Shield
yes
Cable length
5m
Cable characteristic
Suitable for energy chains
Bending radius, flexible cable installation
62mm
Cable diameter
6.2mm
Cable design
6 x 0.34 mm2
Nominal conductor cross section
0.34mm2
Wire ends
Cable end sleeve
Degree of protection
IP65
Note on degree of protection
In mounted state
Ambient temperature
-40°C 80°C
Ambient temperature with flexible cable installation
-5°C 80°C
CE marking (see declaration of conformity)
As per EU RoHS directive
UKCA marking (see declaration of conformity)
To UK RoHS instructions
LABS (PWIS) conformity
VDMA24364-B2-L
Note on materials
RoHS-compliant
Corrosion resistance class (CRC)
0 - No corrosion stress
Material of cable sheath
TPE-U(PUR)
Color cable sheath
Gray
Manufacturer ID
1450370
