High-quality motor cable from Festo, ideal for specific applications, but not recommended for new designs due to phase-out.

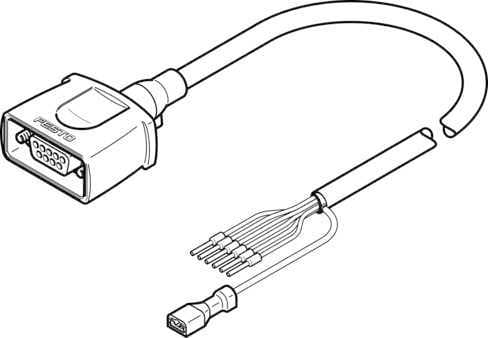

Product Modelnebm-s1g9-e-2.5-q5-le6
Material Number1450369
Product ID2128
Stock on Request
Last updated: 8/29/2026
Key Features
1
High-Quality ConstructionThe Festo NEBM-S1G9-E-2.5-Q5-LE6 motor cable is built with premium materials, ensuring durability and reliability in demanding applications.
2
Specific Application SuitabilityDesigned for specific industrial applications where high performance and precision are crucial, making it a reliable choice for existing projects.
3
Phase-Out NoticeAlthough the product is being phased out, it remains a viable option for existing designs or projects where it has already been integrated. However, it is not recommended for new designs.
4
Compatibility and PerformanceThe cable is engineered to meet the stringent requirements of industrial automation systems, ensuring seamless integration and optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Cable designation
Without label holder
Electrical connection 1, function
Field device end
Electrical connection 1, design
Rectangular
Electrical connection 1, connection type
Socket
Electrical connection 1, cable outlet
Straight
Electrical connection 1, connection technology
Sub-D
5
Limited AvailabilityDue to its phase-out status, the Festo NEBM-S1G9-E-2.5-Q5-LE6 motor cable is available for a limited time. Order now to secure your supply before it is discontinued.
Electrical connection 1, number of pins/wires
9
Electrical connection 1, occupied pins/wires
6
Electrical connection for input 1, connection pattern
00995638
Electrical connection 2, function
Control side
Electrical connection 2, connection type
Cable
Electrical connection 2, connection technology
Open end
Electrical connection 2, number of pins/wires
6
Electrical connection 2, occupied pins/wires
6
DC operating voltage range
0V 72V
Nominal operating voltage DC
24V
Shield
yes
Cable length
2.5m
Cable characteristic
Suitable for energy chains
Bending radius, flexible cable installation
62mm
Cable diameter
6.2mm
Cable design
6 x 0.34 mm2
Nominal conductor cross section
0.34mm2
Wire ends
Cable end sleeve
Degree of protection
IP65
Note on degree of protection
In mounted state
Ambient temperature
-40°C 80°C
Ambient temperature with flexible cable installation
-5°C 80°C
CE marking (see declaration of conformity)
As per EU RoHS directive
UKCA marking (see declaration of conformity)
To UK RoHS instructions
LABS (PWIS) conformity
VDMA24364-B2-L
Note on materials
RoHS-compliant
Corrosion resistance class (CRC)
0 - No corrosion stress
Material of cable sheath
TPE-U(PUR)
Color cable sheath
Gray
Manufacturer ID
1450369
