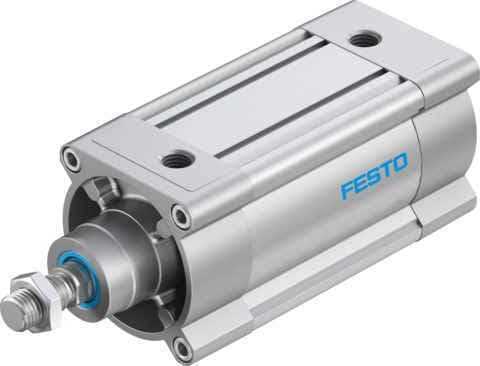

The Festo DSBC-100-100-PPSA-N3 ISO cylinder provides high-performance pneumatic actuation with self-adjusting end-position cushioning. Suitable for various industrial applications, it features a 100 mm stroke and 100 mm piston diameter, conforming to ISO 15552 standards.

Product Modeldsbc-100-100-ppsa-n3

Material Number1384894

Product ID2024

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Reliable Double-Acting OperationThe Festo DSBC-100-100-PPSA-N3 operates in a double-acting mode, ensuring consistent and reliable performance in both forward and return strokes.
2
Self-Adjusting End-Position CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder reduces wear and tear, ensuring smooth operation and extending the lifespan of the component.
3
Conforms to ISO 15552 StandardsThe DSBC-100-100-PPSA-N3 cylinder meets the stringent standards of ISO 15552, ensuring compatibility with a wide range of industrial systems and applications.
4
Versatile Mounting OptionsAvailable for mounting via female thread or accessories, this cylinder offers flexibility in installation, making it suitable for various industrial settings.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

100mm

Piston diameter

100 mm

Piston rod thread

M20x1.5

Cushioning

Self-adjusting pneumatic end-position cushioning

Mounting position

Any

Conforms to standard

ISO 15552

High-Quality MaterialsConstructed from high-quality materials such as wrought aluminium alloy for the piston, high-alloy steel for the piston rod, and TPE-U(PU) for the piston seal, this cylinder ensures durability and resistance to corrosion.

Position Detection via Proximity SensorThe cylinder is designed for position detection via proximity sensor, allowing for precise control and monitoring of the actuation process.

Wide Operating Pressure RangeOperating within a pressure range of 0.4 to 12 bar, this cylinder is versatile and can be used in various applications requiring different levels of pressure.

Corrosion Resistance Class CRC 2With a corrosion resistance class of CRC 2, the DSBC-100-100-PPSA-N3 cylinder is designed to withstand moderate corrosion stress, ensuring reliable performance in harsh environments.

Impact Energy in End PositionsThe cylinder is designed to withstand impact energy of 2.5 J in end positions, providing robustness and reliability during operation.

Easy Integration with AccessoriesThe Festo DSBC-100-100-PPSA-N3 cylinder can be easily integrated with a wide range of accessories, enhancing its functionality and adaptability to various industrial applications.

Structural design

Piston Piston rod Profile barrel

Position sensing

For proximity sensor

Symbol

00992970

Variants

Piston rod at one end

Operating pressure

0.4bar 12bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

2.5J

Cushioning length

31mm

Theoretical force at 6 bar, retracting

4418N

Theoretical force at 6 bar, advancing

4712N

Moving mass at 0 mm stroke

1000g

Additional moving mass per 10 mm stroke

39g

Basic weight with 0 mm stroke

3665g

Additional weight per 10 mm stroke

101g

Type of mounting

Optionally: With internal thread With accessories

Pneumatic connection

G1/2

Note on materials

RoHS-compliant

Cover material

Die-cast aluminum, coated

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston rod material

High-alloy steel

Piston rod wiper material

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Cushion piston material

POM

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Material of bearing

POM

Flange screws material

Steel, galvanized

Manufacturer ID

1384894
