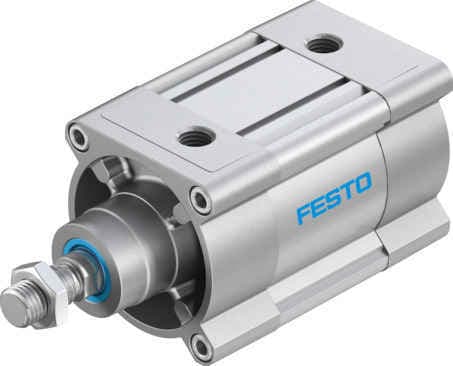

Festo DSBC-100-40-PPSA-N3: High-performance ISO cylinder with self-adjusting pneumatic end-position cushioning, suitable for various industrial applications.
Product Modeldsbc-100-40-ppsa-n3
Material Number1384891
Product ID2021
Stock on Request
Last updated: 8/29/2026
Key Features
1
Self-Adjusting Pneumatic End-Position CushioningThe DSBC-100-40-PPSA-N3 features advanced self-adjusting pneumatic end-position cushioning, ensuring smooth and controlled motion, even in high-impact situations. This technology extends the lifespan of the cylinder by reducing wear and tear.
2
Conforms to ISO 15552 StandardsDesigned to meet the stringent standards of ISO 15552, this cylinder guarantees compatibility and reliability in a wide range of industrial settings. Its adherence to international standards ensures seamless integration with other equipment.
3
Double-Acting OperationThe DSBC-100-40-PPSA-N3 operates in double-acting mode, allowing for both extension and retraction strokes. This versatility makes it suitable for a variety of applications, from simple linear movements to complex mechanisms.
4
Robust ConstructionConstructed from high-quality materials, including wrought aluminium alloy for the piston, high-alloy steel for the piston rod, and die-cast aluminium for the cover, this cylinder is built to withstand demanding industrial conditions. Its robust design ensures durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
40mm
Piston diameter
100 mm
Piston rod thread
M20x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
Operates with Compressed AirThe DSBC-100-40-PPSA-N3 operates using compressed air, which is filtered according to ISO 8573-1:2010 [7:4:4] standards. This ensures that the operating medium is clean and free from contaminants, contributing to the overall performance and longevity of the cylinder.
6
Position Detection via Proximity SwitchEquipped with position detection via proximity switch, this cylinder allows for precise control and monitoring of its movement. This feature is particularly useful in applications requiring accurate positioning and feedback.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
2.5J
Cushioning length
31mm
Theoretical force at 6 bar, retracting
4418N
Theoretical force at 6 bar, advancing
4712N
Moving mass at 0 mm stroke
1000g
Additional moving mass per 10 mm stroke
39g
Basic weight with 0 mm stroke
3665g
Additional weight per 10 mm stroke
101g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G1/2
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Material of bearing
POM
Flange screws material
Steel, galvanized
Manufacturer ID
1384891
