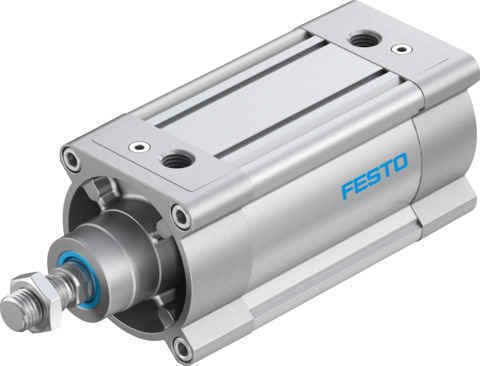

dsbc-100-100-ppva-n3

Name: dsbc-100-100-ppva-n3
Brand: FESTO
SKU: dsbc-100-100-ppva-n3

Short Description: The Festo DSBC-100-100-PPVA-N3 is a double-acting pneumatic cylinder with adjustable cushioning at both ends, designed for precision applications. It features a 100 mm stroke and 100 mm piston diameter, ensuring smooth operation and durability.

Product Modeldsbc-100-100-ppva-n3

Material Number1384808

Product ID2011

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Adjustable CushioningDescription: The DSBC-100-100-PPVA-N3 offers adjustable pneumatic cushioning at both ends, allowing for precise control over the cylinder's movement. This feature ensures smooth operation and reduces wear and tear on the components.
2
Double-Acting OperationDescription: This cylinder operates in both directions, providing flexibility and efficiency in various industrial applications. The double-acting design ensures that the cylinder can be used for both extension and retraction, making it versatile for different tasks.
3
ISO ComplianceDescription: The DSBC-100-100-PPVA-N3 conforms to the ISO 15552 standard, ensuring high-quality performance and reliability. This compliance guarantees that the cylinder meets international standards for pneumatic components.
4
Precision EngineeringDescription: With a 100 mm stroke and 100 mm piston diameter, this cylinder is engineered for precision. The precise dimensions ensure consistent performance and reliability in demanding applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

100mm

Piston diameter

100 mm

Piston rod thread

M20x1.5

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Conforms to standard

ISO 15552

Versatile MountingDescription: The DSBC-100-100-PPVA-N3 can be mounted in any position, offering flexibility in installation. This feature makes it suitable for a wide range of applications where mounting flexibility is crucial.

Operating Pressure RangeDescription: The cylinder operates within a pressure range of 0.4 to 12 bar, making it adaptable to various industrial settings. This range ensures that the cylinder can handle different load requirements effectively.

Material QualityDescription: The cylinder is made from high-quality materials, including wrought aluminum alloy for the piston and high-alloy steel for the piston rod. These materials ensure durability and resistance to corrosion, extending the lifespan of the component.

Position Detection CapabilityDescription: The DSBC-100-100-PPVA-N3 is compatible with proximity sensors, enabling position detection. This feature enhances the overall control and monitoring of the cylinder's movement, ensuring accurate positioning in applications.

Corrosion ResistanceDescription: With a corrosion resistance class of 2 (moderate corrosion stress), this cylinder is designed to withstand moderate environmental conditions. This feature ensures that the cylinder remains functional even in applications where corrosion might be a concern.

Cleanroom CompatibilityDescription: The DSBC-100-100-PPVA-N3 meets the cleanroom class 6 standard according to ISO 14644-1. This certification makes it suitable for use in cleanroom environments where high cleanliness standards are required.

1Operating MediumDescription: The cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring that the air used meets international standards for cleanliness and quality. This feature ensures reliable operation and minimizes the risk of contamination.

1Lubrication OptionDescription: The cylinder can operate with oil lubrication, which is required for further use. This option enhances the performance and longevity of the cylinder by reducing friction and wear on moving parts.

1Impact EnergyDescription: The DSBC-100-100-PPVA-N3 has an impact energy of 2.5 J in the end positions, providing a measure of its ability to absorb shocks. This feature ensures that the cylinder can handle sudden impacts without compromising its performance.

1Theoretical ForcesDescription: The theoretical force at 6 bar (87 psi) for the return stroke is 4418 N, and for the advance stroke, it is 4712 N. These forces indicate the cylinder's ability to handle significant loads while maintaining precision and control.

1Moving MassDescription: The moving mass for a 0 mm stroke is 1000 g, and the additional moving mass per 10 mm stroke is 39 g. These specifications provide insight into the cylinder's inertia and dynamic behavior, helping in the selection and integration of the cylinder into complex systems.

1Basic WeightDescription: The basic weight for a 0 mm stroke is 3665 g, and the additional weight per 10 mm stroke is 101 g. These weights help in planning and designing the overall system, ensuring that it can handle the required loads and stresses.

1Pneumatic ConnectionDescription: The cylinder features a G1/2 pneumatic connection, which is a standard size for pneumatic components. This connection ensures compatibility with a wide range of pneumatic systems and accessories.

1Material ComplianceDescription: The DSBC-100-100-PPVA-N3 is RoHS-compliant, meaning it meets the requirements for restricting the use of certain hazardous substances in electrical and electronic equipment. This compliance ensures that the cylinder is environmentally friendly and safe for use in various applications.

1Cover MaterialDescription: The cover material is die-cast aluminum, coated, providing a durable and corrosion-resistant exterior. This material choice enhances the overall durability and longevity of the cylinder.

20. Piston Seal MaterialDescription: The piston seal material is TPE-U(PU), a type of thermoplastic elastomer that offers excellent sealing properties and resistance to wear. This material choice ensures reliable sealing and minimal leakage.

2Piston Rod MaterialDescription: The piston rod material is high-alloy steel, providing high strength and resistance to corrosion. This material choice ensures that the piston rod can handle significant loads and stresses without compromising its performance.

2Buffer Seal MaterialDescription: The buffer seal material is also TPE-U(PU), ensuring consistent sealing performance and minimal wear. This material choice complements the piston seal material, providing a comprehensive sealing solution.

2Cushioning Boss MaterialDescription: The cushioning boss material is POM (Polyoxymethylene), a thermoplastic known for its high impact resistance and dimensional stability. This material choice ensures that the cushioning system operates efficiently and reliably.

2Cylinder Barrel MaterialDescription: The cylinder barrel is made from smooth-anodized wrought aluminum alloy, providing a durable and corrosion-resistant interior. This material choice enhances the overall performance and longevity of the cylinder.

2Nut MaterialDescription: The nut material is galvanized steel, offering high strength and resistance to corrosion. This material choice ensures that the nut remains secure and functional even in harsh environments.

2Bearing MaterialDescription: The bearing material is POM, providing smooth operation and minimal friction. This material choice ensures that the bearing remains functional over time, reducing wear and tear on the cylinder.

2Flange Screws MaterialDescription: The flange screws material is galvanized steel, offering high strength and resistance to corrosion. This material choice ensures that the flange screws remain secure and functional even in harsh environments.

2Replaces DNC-40-100-PPVDescription: The DSBC-100-100-PPVA-N3 replaces the DNC-40-100-PPV, offering a more versatile and high-performance alternative. This feature ensures that users can upgrade to a more advanced cylinder without significant changes to their existing systems.

2Lead TimeDescription: The lead time for the DSBC-100-100-PPVA-N3 is typically 2-3 days, ensuring that users can quickly integrate this high-performance cylinder into their operations. This feature enhances the overall efficiency and productivity of the manufacturing process.

30. In StockDescription: The DSBC-100-100-PPVA-N3 is available in stock, making it readily accessible for immediate use. This feature ensures that users can quickly obtain the necessary components to meet their production demands.

Structural design

Piston Piston rod Profile barrel

Position sensing

For proximity sensor

Symbol

00991235

Variants

Piston rod at one end

Operating pressure

0.4bar 12bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

2.5J

Cushioning length

31mm

Theoretical force at 6 bar, retracting

4418N

Theoretical force at 6 bar, advancing

4712N

Moving mass at 0 mm stroke

1000g

Additional moving mass per 10 mm stroke

39g

Basic weight with 0 mm stroke

3665g

Additional weight per 10 mm stroke

101g

Type of mounting

Optionally: With internal thread With accessories

Pneumatic connection

G1/2

Note on materials

RoHS-compliant

Cover material

Die-cast aluminum, coated

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston rod material

High-alloy steel

Piston rod wiper material

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Cushion piston material

POM

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Material of bearing

POM

Flange screws material

Steel, galvanized

Manufacturer ID

1384808
