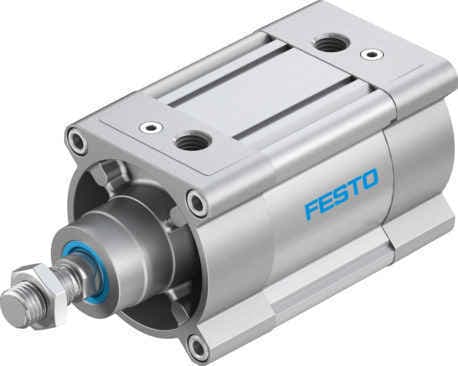

Name: dsbc-100-50-ppva-n3
Brand: FESTO
SKU: dsbc-100-50-ppva-n3

Short Product Description: The Festo DSBC-100-50-PPVA-N3 is a robust ISO cylinder with adjustable pneumatic cushioning, offering precise control and durability in a wide range of industrial applications.

Product Modeldsbc-100-50-ppva-n3

Material Number1384806

Product ID2010

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Adjustable Pneumatic CushioningDescription: The DSBC-100-50-PPVA-N3 features adjustable pneumatic cushioning at both ends, ensuring smooth operation and minimizing wear and tear. This adjustable cushioning allows for precise control over the cylinder's movement, making it suitable for various industrial applications.
2
High-Quality MaterialsDescription: Constructed from high-quality materials, including wrought aluminum alloy for the piston and high-alloy steel for the piston rod, this cylinder ensures durability and resistance to corrosion. The die-cast aluminum cover and TPE-U(PU) seals further enhance its reliability.
3
Compliance with ISO StandardsDescription: The DSBC-100-50-PPVA-N3 conforms to the ISO 15552 standard, ensuring compatibility with a wide range of pneumatic systems. This compliance guarantees that the cylinder meets stringent quality and performance criteria.
4
Versatile Mounting OptionsDescription: With its versatile mounting options, including either via female thread or with accessories, the DSBC-100-50-PPVA-N3 can be easily integrated into various pneumatic setups. This flexibility makes it an ideal choice for diverse industrial applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

50mm

Piston diameter

100 mm

Piston rod thread

M20x1.5

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Conforms to standard

ISO 15552

Operational EfficiencyDescription: Designed for double-acting operation, the DSBC-100-50-PPVA-N3 can handle both forward and reverse movements efficiently. Its operating pressure range of 0.4 to 12 bar ensures optimal performance in a variety of applications, from light to heavy-duty operations.

Corrosion ResistanceDescription: The cylinder boasts a moderate corrosion resistance class (CRC 2), making it suitable for use in environments where moderate corrosion stress is present. Additionally, it meets the VDMA24364-B1/B2-L standards for cleanroom applications, ensuring it can operate effectively in controlled environments.

Position Detection CapabilityDescription: Equipped with proximity switch detection, the DSBC-100-50-PPVA-N3 allows for precise position detection. This feature is particularly useful in applications requiring accurate positioning, such as in automation and robotics.

Operating MediumDescription: The cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring it meets stringent air quality standards. This makes it suitable for use in environments where clean air is essential, such as in cleanrooms or food processing plants.

Impact Energy and Cushioning LengthDescription: The DSBC-100-50-PPVA-N3 has an impact energy of 1 J in the end positions and a cushioning length of 22 mm. These specifications ensure that the cylinder can handle sudden impacts and maintain smooth operation, reducing wear and tear on the system.

Theoretical ForcesDescription: The theoretical force at 0.6 MPa (6 bar) during the return stroke is 990 N, and during the advance stroke, it is 1178 N. These forces indicate the cylinder's ability to handle significant loads while maintaining precise control over its movement.

1Moving Mass and Product WeightDescription: The moving mass of the cylinder is 615 g, with an additional moving mass of 25 g per 10 mm stroke. The product weight is 1750 g, including the basic weight of 1190 g for a 0 mm stroke and an additional weight of 56 g per 10 mm stroke. These specifications ensure that the cylinder is balanced and efficient in its operation.

1Cleanroom ClassDescription: The DSBC-100-50-PPVA-N3 meets the cleanroom class 6 according to ISO 14644-1, making it suitable for use in controlled environments where cleanliness is crucial. This classification ensures that the cylinder does not contaminate the surrounding area, maintaining the integrity of the application.

1Ambient Temperature RangeDescription: The cylinder operates within an ambient temperature range of -20 °C to 80 °C, providing flexibility in its deployment across various environmental conditions. This range ensures that the cylinder can function optimally in both cold and warm environments.

1Lubricated OperationDescription: The DSBC-100-50-PPVA-N3 supports lubricated operation, which is always required when using this feature. Lubrication enhances the longevity and efficiency of the cylinder, reducing friction and wear over time.

1RoHS ComplianceDescription: The Festo DSBC-100-50-PPVA-N3 is RoHS-compliant, adhering to the Restriction of Hazardous Substances directive. This compliance ensures that the cylinder does not contain harmful substances, making it environmentally friendly and safe for use in various applications.

Structural design

Piston Piston rod Profile barrel

Position sensing

For proximity sensor

Symbol

00991235

Variants

Piston rod at one end

Operating pressure

0.4bar 12bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

2.5J

Cushioning length

31mm

Theoretical force at 6 bar, retracting

4418N

Theoretical force at 6 bar, advancing

4712N

Moving mass at 0 mm stroke

1000g

Additional moving mass per 10 mm stroke

39g

Basic weight with 0 mm stroke

3665g

Additional weight per 10 mm stroke

101g

Type of mounting

Optionally: With internal thread With accessories

Pneumatic connection

G1/2

Note on materials

RoHS-compliant

Cover material

Die-cast aluminum, coated

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston rod material

High-alloy steel

Piston rod wiper material

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Cushion piston material

POM

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Material of bearing

POM

Flange screws material

Steel, galvanized

Manufacturer ID

1384806
