dsbc-80-50-ppsa-n3

Name: dsbc-80-50-ppsa-n3
Brand: FESTO
SKU: dsbc-80-50-ppsa-n3

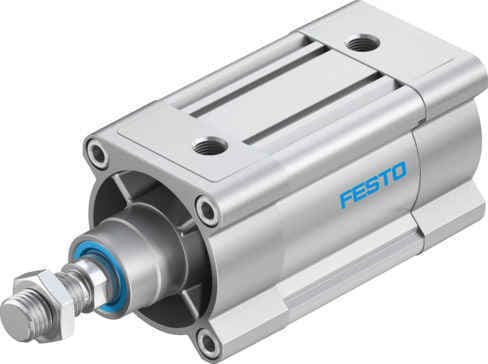

The Festo DSBC-80-50-PPSA-N3 is a double-acting pneumatic piston rod cylinder with a 50mm stroke and 80mm piston diameter. It includes self-adjusting pneumatic end-position cushioning and is designed to meet ISO 15552 standards, ensuring high performance and reliability in various industrial applications.

Product Modeldsbc-80-50-ppsa-n3

Material Number1383368

Product ID1974

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Performance and ReliabilityThe Festo DSBC-80-50-PPSA-N3 is engineered to meet the stringent standards of ISO 15552, ensuring consistent performance and reliability in demanding industrial environments.
2
Self-Adjusting CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
3
Versatile Mounting OptionsThe cylinder can be mounted via a female thread or with accessories, offering flexibility in installation and integration into various systems.
4
Compressed Air CompatibilityDesigned to operate with compressed air as per ISO 8573-1:2010 [7:4:4], this cylinder is compatible with most industrial air supply systems.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

50mm

Piston diameter

80 mm

Piston rod thread

M20x1.5

Cushioning

Self-adjusting pneumatic end-position cushioning

Mounting position

Any

Conforms to standard

ISO 15552

Robust ConstructionConstructed from high-quality materials such as die-cast aluminum, wrought aluminum alloy, and high-alloy steel, the DSBC-80-50-PPSA-N3 ensures durability and resistance to corrosion.

Position Detection CapabilityThe cylinder is designed for position sensing via proximity switch, allowing for precise control and monitoring of its movement.

Operating Pressure RangeThe operating pressure range of 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar) makes it suitable for a wide range of applications, from low-pressure to high-pressure operations.

Corrosion ResistanceWith a corrosion resistance class of CRC 2 - Moderate corrosion stress, the DSBC-80-50-PPSA-N3 is designed to withstand moderate environmental conditions, ensuring consistent performance over time.

Impact Energy ManagementThe cylinder is designed to manage impact energy in end positions effectively, reducing the risk of damage and extending its operational life.

Material ComplianceThe product is RoHS-compliant, ensuring that it meets the requirements for the restriction of hazardous substances in electrical and electronic equipment.

Structural design

Piston Piston rod Profile barrel

Position sensing

For proximity sensor

Symbol

00992970

Variants

Piston rod at one end

Operating pressure

0.4bar 12bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

1.8J

Cushioning length

31mm

Theoretical force at 6 bar, retracting

2721N

Theoretical force at 6 bar, advancing

3016N

Moving mass at 0 mm stroke

810g

Additional moving mass per 10 mm stroke

39g

Basic weight with 0 mm stroke

2660g

Additional weight per 10 mm stroke

92g

Type of mounting

Optionally: With internal thread With accessories

Pneumatic connection

G3/8

Note on materials

RoHS-compliant

Cover material

Die-cast aluminum, coated

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston rod material

High-alloy steel

Piston rod wiper material

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Cushion piston material

POM

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Material of bearing

POM

Flange screws material

Steel, galvanized

Manufacturer ID

1383368
