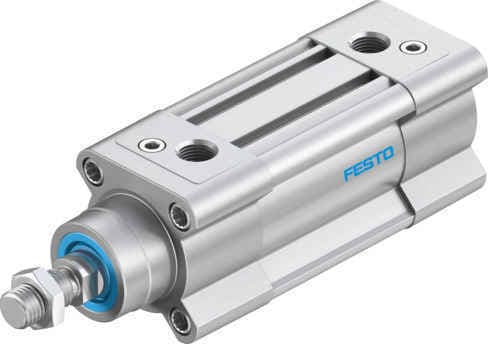

Adjustable Pneumatic CushioningThe DSBC-40-25-PPVA-N3 features pneumatic cushioning that can be adjusted at both ends, providing customizable damping to suit various application requirements. This ensures smooth and controlled movements, reducing wear and tear on the system.
2
High Precision and ReliabilityWith a 40mm piston diameter and 25mm stroke, this cylinder offers high precision and reliability in a compact design. It is suitable for applications where precise control is essential.
3
Versatile Mounting OptionsThe cylinder can be mounted in various positions, allowing for flexible integration into different systems. This versatility makes it particularly suitable for decentralized use in large systems.
4
Robust ConstructionThe Festo DSBC-40-25-PPVA-N3 is built with robust components, ensuring durability and long service life. The hard-chrome plated piston rod and metal scraper provide high corrosion protection, making it ideal for use in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
25mm
Piston diameter
40 mm
Piston rod thread
M12x1.25
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
Any
Conforms to standard
ISO 15552
5
Dynamic Movement CapabilitiesThis cylinder is designed for dynamic movements, offering very fast dynamic response and minimal resistance during movement. It is efficient at speeds above 50 mm/s, making it suitable for applications requiring rapid and precise actions.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00991235
Variants
Piston rod at one end
Operating pressure
0.6bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
