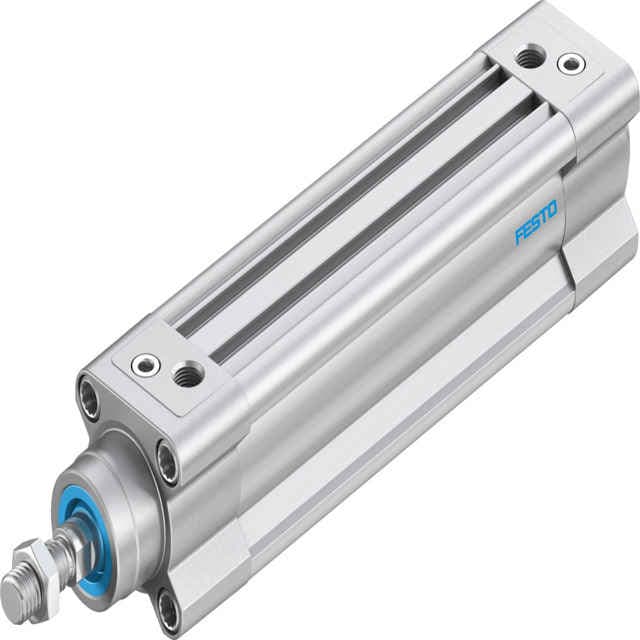

Adjustable CushioningThe DSBC-32-100-PPVA-N3 features pneumatic cushioning adjustable at both ends, providing optimal control and reducing wear on the cylinder.
2
High-Performance OperationWith a stroke of 100 mm and a piston diameter of 32 mm, this cylinder is designed for high-performance applications requiring precise movement.
3
Versatile MountingThe cylinder can be mounted in any position, offering flexibility in system design and installation.
4
Compliance with StandardsThe DSBC-32-100-PPVA-N3 conforms to the ISO 15552 standard, ensuring compatibility with a wide range of pneumatic systems.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
100mm
Piston diameter
32 mm
Piston rod thread
M10x1.25
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
Any
Conforms to standard
ISO 15552
Durable ConstructionMade from high-quality materials including wrought aluminum alloy for the cylinder barrel and high alloy steel for the piston rod, this cylinder is built to last.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00991235
Variants
Piston rod at one end
Operating pressure
0.6bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
