dsbc-50-25-ppva-n3

Name: dsbc-50-25-ppva-n3
Brand: FESTO
SKU: dsbc-50-25-ppva-n3

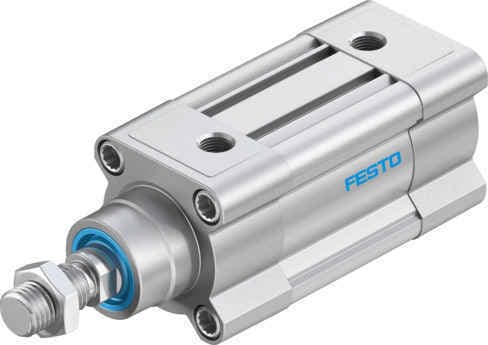

The Festo DSBC-50-25-PPVA-N3 ISO cylinder features adjustable pneumatic cushioning, a 50mm piston diameter, and a 25mm stroke. It conforms to ISO 15552 standards, ensuring high performance and reliability in various applications.

Product Modeldsbc-50-25-ppva-n3

Material Number1366948

Product ID1858

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Adjustable Pneumatic CushioningThe DSBC-50-25-PPVA-N3 offers adjustable pneumatic cushioning at both ends, allowing for customizable damping to suit specific application needs. This feature enhances the cylinder's performance and longevity by reducing wear and tear.
2
High-Quality MaterialsConstructed from high-alloy steel for the piston rod and wrought aluminum alloy for the piston, this cylinder ensures durability and resistance to corrosion. The use of TPE-U(PU) materials for seals and buffers adds to its reliability.
3
ISO 15552 ComplianceThe Festo DSBC-50-25-PPVA-N3 cylinder conforms to the ISO 15552 standard, guaranteeing compatibility with a wide range of pneumatic systems. This compliance ensures seamless integration into various industrial setups.
4
Versatile Mounting OptionsWith its versatile mounting options, including female thread and accessory mounting, the DSBC-50-25-PPVA-N3 can be easily integrated into different configurations. This flexibility makes it suitable for a variety of applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

25mm

Piston diameter

50 mm

Piston rod thread

M16x1.5

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Conforms to standard

ISO 15552

High Operating Pressure RangeThe cylinder operates within a pressure range of 0.4 to 12 bar, making it adaptable to various industrial environments. This range ensures the cylinder can handle diverse operational demands with ease.

Precise Position DetectionEquipped with proximity switch position detection, the DSBC-50-25-PPVA-N3 allows for precise control over the cylinder's movement. This feature is particularly useful in applications requiring accurate positioning and control.

Robust Design and ConstructionThe cylinder's profile barrel design, combined with its smooth-anodized wrought aluminum alloy material, ensures a robust and reliable construction. This design enhances the cylinder's ability to withstand moderate corrosion stress and maintain its performance over time.

Environmental CompatibilityThe Festo DSBC-50-25-PPVA-N3 is RoHS-compliant, ensuring it meets environmental standards for hazardous substances. This compliance makes it a sustainable choice for industrial applications.

Operational FlexibilityThe cylinder supports both lubricated and non-lubricated operations, providing flexibility in terms of maintenance and operational requirements. This flexibility is particularly beneficial in applications where lubrication might not be feasible or desired.

Compact DesignWith a compact design, the Festo DSBC-50-25-PPVA-N3 cylinder is ideal for applications in confined spaces. Its reduced size enhances productivity by allowing for more efficient use of space.

Structural design

Piston Piston rod Profile barrel

Position sensing

For proximity sensor

Symbol

00991235

Variants

Piston rod at one end

Operating pressure

0.4bar 12bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 6 according to ISO 14644-1

Ambient temperature

-20°C 80°C

Impact energy in the end positions

Cushioning length

22mm

Theoretical force at 6 bar, retracting

990N

Theoretical force at 6 bar, advancing

1178N

Moving mass at 0 mm stroke

365g

Additional moving mass per 10 mm stroke

25g

Basic weight with 0 mm stroke

1190g

Additional weight per 10 mm stroke

56g

Type of mounting

Optionally: With internal thread With accessories

Pneumatic connection

G1/4

Note on materials

RoHS-compliant

Cover material

Die-cast aluminum, coated

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston rod material

High-alloy steel

Piston rod wiper material

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Cushion piston material

POM

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Material of bearing

POM

Flange screws material

Steel, galvanized

Manufacturer ID

1366948
