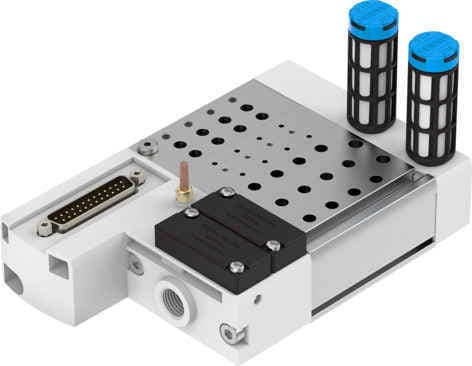

The Festo VABM-C8-12E-G14-35-M1-L manifold rail offers 35 valve positions, corrosion resistance, and a robust design, making it ideal for high-performance pneumatic systems.
Product Modelvabm-c8-12e-g14-35-m1-l
Material Number1361879
Product ID1857
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Valve Position CapacityThe VABM-C8-12E-G14-35-M1-L manifold rail supports up to 35 valve positions, making it suitable for complex pneumatic systems that require multiple control points.
2
Corrosion ResistanceWith a corrosion resistance class of 0, this product is designed to withstand harsh environments without experiencing corrosion stress, ensuring long-term reliability.
3
Robust ConstructionBuilt with a wrought aluminum alloy, the manifold rail offers a robust construction that can withstand the demands of high-performance pneumatic applications.
4
Easy InstallationThe product features a max. tightening torque of 0.6 Nm for valve mounting and 5 Nm for wall mounting, making it easy to install and secure in place.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Width dimension
12mm
Max. no. of valve positions
35
Corrosion resistance class (CRC)
0 - No corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Max. tightening torque for valve mounting
0.6Nm
Max. tightening torque for wall mounting
5Nm
5
Pneumatic Connection FlexibilityEquipped with G1/4 pneumatic connections on ports 1, 3, and 5, this manifold rail provides flexibility in connecting various pneumatic components to meet specific system requirements.
