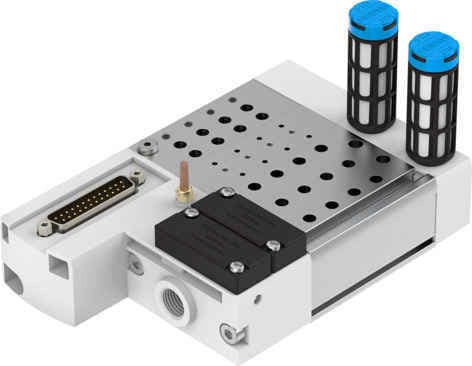

High-performance manifold rail with 28 valve positions, 12mm grid dimension, and made from RoHS-compliant wrought aluminum alloy.
Product Modelvabm-c8-12e-g14-28-m1-l
Material Number1361877
Product ID1855
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Valve Position CapacityThe VABM-C8-12E-G14-28-M1-L manifold rail supports up to 28 valve positions, making it an ideal choice for complex pneumatic control systems.
2
Compact DesignWith a grid dimension of 12mm, this manifold rail offers a compact design that fits seamlessly into various industrial settings.
3
Corrosion ResistanceFeaturing a corrosion resistance class of 0 (no corrosion stress), this product ensures long-lasting performance in harsh environments.
4
Easy InstallationThe manifold rail is designed with a maximum tightening torque of 0.6 Nm for valve mounting and 5 Nm for wall mounting, making installation straightforward and secure.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Width dimension
12mm
Max. no. of valve positions
28
Corrosion resistance class (CRC)
0 - No corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Max. tightening torque for valve mounting
0.6Nm
Max. tightening torque for wall mounting
5Nm
Material QualityMade from RoHS-compliant wrought aluminum alloy, this product meets stringent environmental and safety standards, ensuring reliability and durability.
Product weight
1704g
Pneumatic connection 1
G1/4
Pneumatic connection 3
G1/4
Pneumatic connection 5
G1/4
Note on materials
RoHS-compliant
Manifold rail material
Wrought aluminum alloy
Manufacturer ID
1361877
