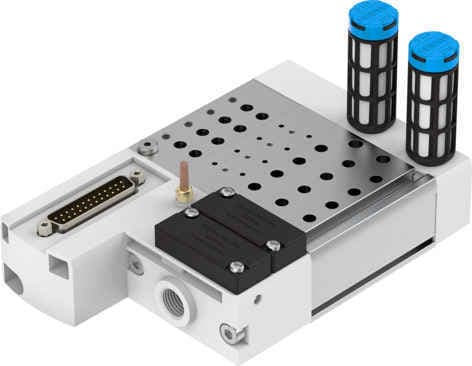

High Corrosion ResistanceThe VABM-C8-12E-G14-16-M1-L features a corrosion resistance class of 0, ensuring it can withstand harsh environments without compromising performance.
2
Precise ConnectionsEquipped with G1/4 pneumatic connections, this manifold rail provides reliable and precise connections for your pneumatic systems.
3
Robust ConstructionMade from wrought aluminum alloy, the VABM-C8-12E-G14-16-M1-L offers a robust construction that can handle demanding applications with ease.
4
High Valve Position CapacityDesigned to accommodate up to 16 valve positions, this manifold rail is perfect for complex pneumatic systems requiring multiple control points.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Width dimension
12mm
Max. no. of valve positions
16
Corrosion resistance class (CRC)
0 - No corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Max. tightening torque for valve mounting
0.6Nm
Max. tightening torque for wall mounting
5Nm
Compliance with RoHS StandardsThe VABM-C8-12E-G14-16-M1-L is RoHS-compliant, ensuring it meets the highest standards of environmental sustainability and safety.
