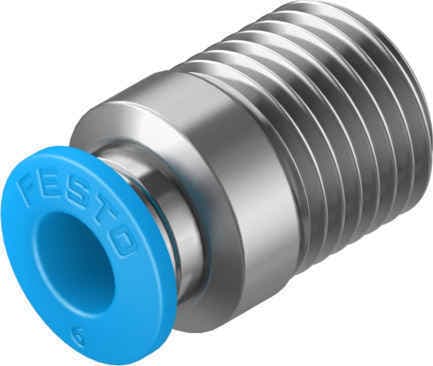

Festo QS-1/4-6-I-100 push-in fitting for pneumatic systems. Compatible with 6 mm hose diameter, suitable for temperatures up to 80°C and pressures up to 14 bar.
Product Modelqs-1/4-6-i-100
Material Number133193
Product ID1833
Stock on Request
Last updated: 8/29/2026
Key Features
1
Maximum Component DensityThe Festo QS-1/4-6-I-100 push-in fitting is designed for maximum component density in confined spaces, making it ideal for applications where space is limited.
2
Temperature and Pressure RangeThis fitting is suitable for temperatures up to 80°C and pressures up to 14 bar, ensuring reliable performance in various pneumatic applications.
3
Versatile CompatibilityThe QS-1/4-6-I-100 is compatible with a 6 mm hose diameter and features various thread connections (M3, M5, M6, M7, R1/8, G1/8), making it versatile for different pneumatic systems.
4
Corrosion ResistanceThe fitting is made from corrosion-resistant materials, including brass and nickel-plated housing, ensuring durability and longevity in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
4.2mm
Type of seal on screwed plug
Coating
Mounting position
Any
Design
Straight design
Pack size
100
5
Easy InstallationThe push-in principle allows for easy and quick installation, reducing setup time and increasing efficiency in pneumatic system assembly.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Ambient temperature
-10°C 80°C
Product weight
13g
Type of mounting
Internal hexagon, AF 4
Pneumatic connection 1
External thread R1/4
Pneumatic connection 2
for pneumatic tubing outside diameter 6 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Housing material
Brass, nickel-plated
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
133193
