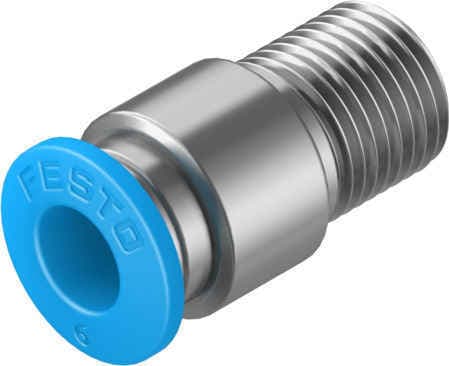

Festo QS-1/8-6-I-100: Reliable pneumatic air inline fitting with 4mm internal HEX and PTFE pre-coated thread for smooth connections.
Product Modelqs-1/8-6-i-100
Material Number133186
Product ID1826
Stock on Request
Last updated: 8/29/2026
Key Features
1
Durable DesignThe Festo QS-1/8-6-I-100 features a robust straight-form design, ensuring long-lasting performance in various industrial applications.
2
Smooth OperationThe 4mm internal HEX and PTFE pre-coated thread provide a smooth, leak-free connection, reducing downtime and increasing productivity.
3
Easy InstallationThe push-in fitting design makes installation quick and straightforward, minimizing setup time and effort.
4
Versatile UseSuitable for a wide range of pneumatic systems, the QS-1/8-6-I-100 is ideal for applications requiring reliable and efficient air flow management.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
4.2mm
Type of seal on screwed plug
Coating
Mounting position
Any
Design
Straight design
Pack size
100
High-Quality MaterialsConstructed with high-quality materials, this fitting ensures consistent performance and durability, even in demanding environments.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
