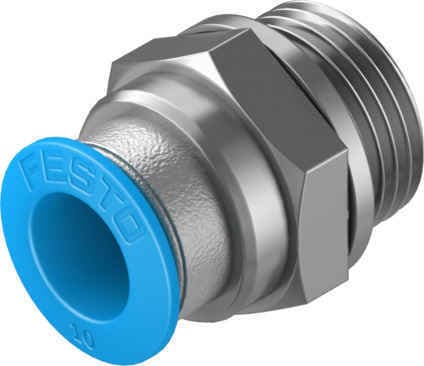

Effortless pneumatic tubing connection with the Festo QS-G3/8-10-50 push-in connector, ensuring reliability and efficiency in your industrial setup.
Product Modelqs-g3/8-10-50
Material Number132044
Product ID1643
Stock on Request
Last updated: 8/29/2026
Key Features
1
Reliable ConnectionThe Festo QS-G3/8-10-50 push-in connector provides a secure and reliable connection for pneumatic tubing, minimizing the risk of leaks and ensuring consistent performance.
2
Easy InstallationDesigned for quick and easy installation, this connector saves time and effort in your workflow, making it perfect for applications where speed is crucial.
3
High Corrosion ResistanceConstructed with high-quality materials, the QS-G3/8-10-50 offers excellent corrosion resistance, ensuring durability even in harsh environments.
4
Efficient OperationThe push-in design allows for fast and efficient connections, reducing downtime and increasing productivity in your industrial processes.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Size
Standard
Nominal width
9mm
Type of seal on screwed plug
Sealing ring
Mounting position
Any
Design
Straight design
Pack size
50
Versatile ApplicationSuitable for a wide range of pneumatic applications, the QS-G3/8-10-50 is a versatile solution that can be used in various industries, from manufacturing to automation.
Structural design
Push-pull principle
Operating pressure for entire temperature range
-13.775psi 87psi
Temperature-dependent operating pressure
-13.775psi 203psi
Information on operating pressure
Water: max. 0.6 MPa at max. 50 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media
Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Ambient temperature
-10°C 80°C
Nominal tightening torque
15.5Nm
Tolerance for nominal tightening torque
± 20%
Product weight
22g
Type of mounting
External hexagon, AF 19
Pneumatic connection 1
External thread G3/8
Pneumatic connection 2
for pneumatic tubing outside diameter 10 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Housing material
Brass, nickel-plated
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Manufacturer ID
132044
