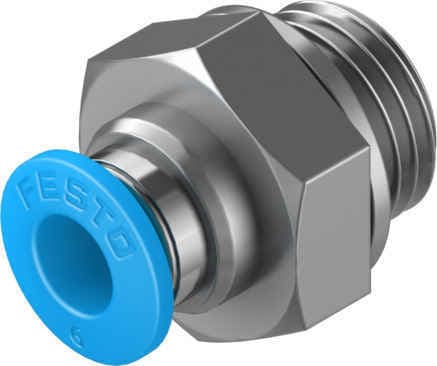

qs-g1/4-6-100

Name: qs-g1/4-6-100
Brand: FESTO
SKU: qs-g1/4-6-100

The Festo QS-G1/4-6-100 push-in fitting provides a secure and efficient connection with a 5 mm nominal size, featuring a sealing ring and optional mounting position. Suitable for various pneumatic applications.

Product Modelqs-g1/4-6-100

Material Number132039

Product ID1638

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Reliable SealingThe QS-G1/4-6-100 features a sealing ring that ensures a tight and leak-free connection, making it ideal for critical pneumatic applications.
2
Versatile MountingThe push-in fitting offers an optional mounting position, allowing for flexibility in installation and customization to fit different system requirements.
3
Efficient DesignWith a straight design, the QS-G1/4-6-100 facilitates easy installation and reduces the risk of kinking or blockages in pneumatic lines.
4
High-Quality MaterialsConstructed from durable materials, the push-in fitting ensures long-lasting performance and resistance to wear and tear.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

5mm

Type of seal on screwed plug

Sealing ring

Mounting position

Any

Design

Straight design

Pack size

100

Easy InstallationThe QS-G1/4-6-100 is designed for quick and simple installation, reducing downtime and increasing productivity in various industrial settings.

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Nominal tightening torque

9Nm

Tolerance for nominal tightening torque

± 20%

Product weight

17g

Type of mounting

External hexagon, AF 17

Pneumatic connection 1

External thread G1/4

Pneumatic connection 2

for pneumatic tubing outside diameter 6 mm

Releasing ring color

Blue

Note on materials

RoHS-compliant

Housing material

Brass, nickel-plated

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

132039
