qstl-1/8-6-100

Name: qstl-1/8-6-100
Brand: FESTO
SKU: qstl-1/8-6-100

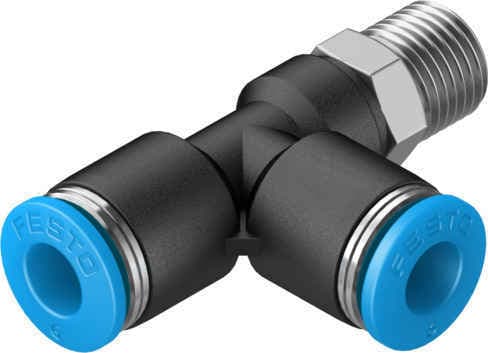

The Festo QSTL-1/8-6-100 is a high-quality, 360° orientable push-in T-fitting designed for pneumatic systems. With a standard nominal size of 4.3 mm and a PBT body, it ensures durability and reliability. The PTFE pre-coated thread provides excellent sealing performance.

Product Modelqstl-1/8-6-100

Material Number130825

Product ID1612

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
360° Orientable DesignThe Festo QSTL-1/8-6-100 features a 360° orientable design, allowing for easy installation and flexibility in various mounting positions.
2
Standard Nominal SizeWith a standard nominal size of 4.3 mm, this fitting is compatible with a wide range of pneumatic systems, ensuring seamless integration.
3
Reliable SealingThe PTFE pre-coated thread ensures a secure and reliable seal, minimizing the risk of leaks and maintaining system pressure.
4
Durable ConstructionThe polybutylene terephthalate (PBT) body provides excellent durability and resistance to wear and tear, ensuring long-lasting performance.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Size

Standard

Nominal width

4.3mm

Type of seal on screwed plug

Coating

Mounting position

Any

Design

L-shape, additional push-in connector, lengthwise

Pack size

100

Versatile ApplicationsIdeal for various pneumatic applications, including industrial automation, manufacturing, and robotics, the QSTL-1/8-6-100 offers a versatile solution for diverse needs.

Operating pressure for entire temperature range

-13.775psi 87psi

Temperature-dependent operating pressure

-13.775psi 203psi

Information on operating pressure

Water: max. 0.6 MPa at max. 50 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Information on operating and pilot media

Operation with oil lubrication possible

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom class

Class 4 according to ISO 14644-1

Ambient temperature

-10°C 80°C

Nominal tightening torque

7Nm

Tolerance for nominal tightening torque

± 20%

Product weight

14g

No. of outlets

No. of supply lines

Type of mounting

External hexagon, AF 10

Pneumatic connection 1

External thread R1/8

Pneumatic connection 2

for pneumatic tubing outside diameter 6 mm

Releasing ring color

Blue

Material of screwed plug

Brass, nickel-plated

Note on materials

RoHS-compliant

Housing material

PBT

Releasing ring material

POM

Material of tubing seal

NBR

Material of tube retaining claw

High-alloy stainless steel

Manufacturer ID

130825
