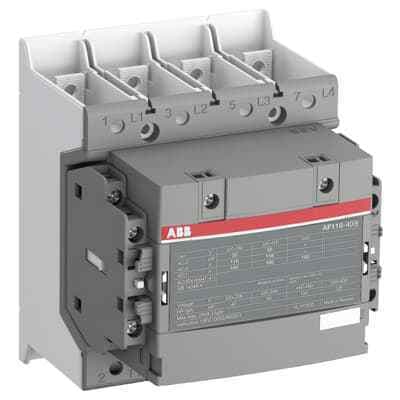

AF116-40-22B-13

Name: AF116-40-22B-13
Brand: ABB
SKU: AF116-40-22B-13

The ABB AF116-40-22B-13 is a 4-pole contactor with pre-mounted auxiliary contacts, designed for controlling motors up to 55 kW and switching power circuits up to 160 A. It offers a wide control voltage range and built-in surge protection, ensuring reliable operation in unstable networks.

Product ModelAF116-40-22B-13

Material Number1SFL427102R1322

Product ID111164

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Wide Control Voltage RangeThe AF116-40-22B-13 operates efficiently across a wide control voltage range of 100-250 V, 50/60 Hz and DC, managing large control voltage variations and reducing panel energy consumptions.
2
2. Built-in Surge ProtectionThis contactor features built-in surge protection, offering a compact solution that ensures distinct operations in unstable networks, thereby enhancing overall system reliability.
3
3. Pre-Mounted Auxiliary ContactsThe contactor comes with pre-mounted auxiliary contacts, making it easy to integrate additional functions and accessories, thereby extending its functionality as needed.
4
4. Compact DesignThe block-type design of the AF116-40-22B-13 makes it compact and easy to install, fitting well into various industrial control panels without taking up excessive space.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Net Width

120 mm

Product Net Depth / Length

128 mm

Product Net Height

150 mm

Product Net Weight

1.95 kg

Number of Main Contacts NO

Number of Main Contacts NC

5. High Durability and PerformanceDesigned with high-quality components, this contactor offers excellent mechanical durability and performance, ensuring it can withstand frequent switching operations and harsh environmental conditions.

Number of Auxiliary Contacts NO

Number of Auxiliary Contacts NC

Rated Operational Voltage

Main Circuit 690 V

Rated Frequency (f)

Main Circuit 60 Hz

Conventional Free-air Thermal Current (Ith)

acc. to IEC 60947-4-1, Open Contactors Î = 40 Â°C 160 A

Rated Operational Current AC-1 (Ie)

(690 V) 40 Â°C 160 A (690 V) 60 Â°C 145 A (690 V) 70 Â°C 130 A

Rated Operational Current AC-3 (Ie)

(415 V) 55 Â°C 116 A (440 V) 55 Â°C 116 A (380 / 400 V) 55 Â°C 116 A (220 / 230 / 240 V) 55 Â°C 116 A

Rated Operational Power AC-3 (Pe)

(415 V) 55 kW (440 V) 75 kW (380 / 400 V) 55 kW (220 / 230 / 240 V) 30 kW

Rated Breaking Capacity AC-3

8 x Ie AC-3

Rated Making Capacity AC-3

10 x Ie AC-3

Short-Circuit Protective Devices

gG Type Fuses 200 A

Rated Short-time Withstand Current Low Voltage (Icw)

at 40 Â°C Ambient Temp, in Free Air, from a Cold State 10 s 928 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 15 min 160 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 min 379 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 s 1300 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 30 s 536 A

Maximum Breaking Capacity

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2000 A

Maximum Electrical Switching Frequency

(AC-1) 300 cycles per hour

Rated Insulation Voltage (Ui)

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (Uimp)

Main Circuit 8 kV

Mechanical Durability

5 million

Maximum Mechanical Switching Frequency

300 cycles per hour

Coil Operating Limits

(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at Î¸ â¤ 70 Â°C)

Rated Control Circuit Voltage (Uc)

50 Hz 100 ... 250 V 60 Hz 100 ... 250 V DC Operation 100 ... 250 V

Coil Consumption

Holding at Max. Rated Control Circuit Voltage 50 Hz 6 VÂ·A Holding at Max. Rated Control Circuit Voltage 60 Hz 6 VÂ·A Holding at Max. Rated Control Circuit Voltage DC 3 W Pull-in at Max. Rated Control Circuit Voltage 50 Hz 130 VÂ·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 130 VÂ·A Pull-in at Max. Rated Control Circuit Voltage DC 135 W

Operate Time

Between Coil De-energization and NO Contact Opening 40 ... 70 ms Between Coil Energization and NO Contact Closing 20 ... 55 ms

Connecting Capacity Main Circuit

Flexible 1 x 10 ... 70 mmÂ² Rigid Cu-Cable 1 x 10 ... 95 mmÂ²

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 2x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mmÂ² Flexible 2x0.75 ... 2.5 mmÂ² Solid 2 x 1 ... 4 mmÂ² Stranded 2 x 1 .... 4 mmÂ²

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type

Main Circuit: Bars

Maximum Operating Voltage UL/CSA

Main Circuit 600 V

General Use Rating UL/CSA

(600 V AC) 160 A

Horsepower Rating UL/CSA

(200 ... 208 V AC) Three Phase 15 Hp (200 V AC) Three Phase 30 hp (208 V AC) Three Phase 30 hp (220 ... 240 V AC) Three Phase 20 Hp (220 ... 240 V AC) Three Phase 40 hp (440 ... 480 V AC) Three Phase 40 Hp (440 ... 480 V AC) Three Phase 75 hp (550 ... 600 V AC) Three Phase 50 Hp (550 ... 600 V AC) Three Phase 100 hp

Ambient Air Temperature

Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 Â°C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 Â°C Close to Contactor for Storage -40 ... 70 Â°C

Maximum Operating Altitude Permissible

Without Derating 3000 m

Object Classification Code

ETIM 7

EC000066 - Power contactor, AC switching

ETIM 8

EC000066 - Power contactor, AC switching

ETIM 9

EC000066 - Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

IDEA Granular Category Code (IGCC)

4758 >> Iec Contactors

E-Number (Finland)

3706077

Manufacturer ID

1SFL427102R1322
