XT2H 160 Ekip I In=100A 4p F F

Name: XT2H 160 Ekip I In=100A 4p F F
Brand: ABB
SKU: XT2H 160 Ekip I In=100A 4p F F

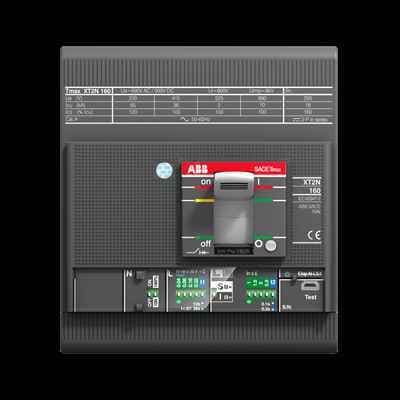

Short Description: The ABB XT2H 160 Ekip LSIG 100A 4P FF is a high-performance, four-pole circuit breaker designed for AC applications. It features a solid-state release and front terminals, ensuring reliable and efficient power distribution.

Product ModelXT2H 160 Ekip I In=100A 4p F F

Material Number1SDA067899R1

Product ID111163

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable PerformanceThe XT2H 160 Ekip LSIG 100A 4P FF circuit breaker is engineered to provide consistent and reliable performance, ensuring that your electrical systems operate smoothly and safely.
2
2. Efficient DesignWith its advanced solid-state release mechanism, this circuit breaker minimizes power loss and maximizes efficiency, making it an ideal choice for applications where energy conservation is crucial.
3
3. Safety FeaturesEquipped with front terminals and a magnetic release, the XT2H 160 Ekip LSIG 100A 4P FF offers enhanced safety features, reducing the risk of electrical accidents and ensuring a secure working environment.
4
4. Environmental SustainabilityDesigned with circular principles in mind, this product adheres to the standard EN45555, achieving a recyclability rate of 58.1%. This commitment to sustainability aligns with modern environmental standards.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Environmental Information

9AKK108467A6707

Product Net Width

120 mm

Product Net Height

130 mm

Product Net Depth / Length

82.5 mm

Product Net Weight

1.6 kg

Circuit Breaker Type to be Associated

Power Distribution

5. Compliance and CertificationsThe XT2H 160 Ekip LSIG 100A 4P FF meets various international standards, including IEC and UL certifications. This ensures that the product meets the highest safety and performance standards, providing peace of mind for users.

Product Main Type

SACE Tmax XT

Product Name

Moulded Case Circuit Breaker

Product Type

Automatic Circuit Breaker

Version

CAD Dimensional Drawing

1SDH002230A1002

Connecting Capacity Main Circuit

Busbar 32.5..100 mmÂ²

Current Type

Electrical Durability

120 cycles per hour 8000 cycle

Mechanical Durability

240 cycles per hour 25000 cycle

Number of Poles

Opening Time

CB with SOR 15 ms CB with UVR 15 ms

Order Multiple

1 piece

Power Loss

at Rated Operating Conditions per Pole 4.2 W

Rated Current (In)

100 A

Rated Frequency (f)

50 / 60 Hz

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

1000 V

Rated Operational Voltage

690 V AC

Rated Service Short-Circuit Breaking Capacity (Ics)

(220 V AC) 100 kA (230 V AC) 100 kA (240 V AC) 100 kA (380 V AC) 70 kA (415 V AC) 70 kA (440 V AC) 65 kA (500 V AC) 50 kA (525 V AC) 30 kA (690 V AC) 15 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

(220 V AC) 100 kA (230 V AC) 100 kA (240 V AC) 100 kA (380 V AC) 70 kA (415 V AC) 70 kA (440 V AC) 65 kA (500 V AC) 50 kA (525 V AC) 30 kA (690 V AC) 15 kA

Rated Uninterrupted Current (Iu)

160 A

Rated Voltage (Ur)

690 V

Recommended Screw Driver

Main Circuit M6

Release

Ekip I

Release Type

Short-Circuit Performance Level

Standards

IEC60947-2

Sub-type

XT2

Terminal Connection Type

Front

Terminal Type

Bolt

Tightening Torque

6 NÂ·m

ETIM 8

EC000228 - Power circuit-breaker for trafo/generator/installation protection

ETIM 9

EC000228 - Power circuit-breaker for trafo/generator/installation protection

Object Classification Code

UNSPSC

39120000

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

eClass

V11.1 : 27370409

Manufacturer ID

1SDA067899R1
