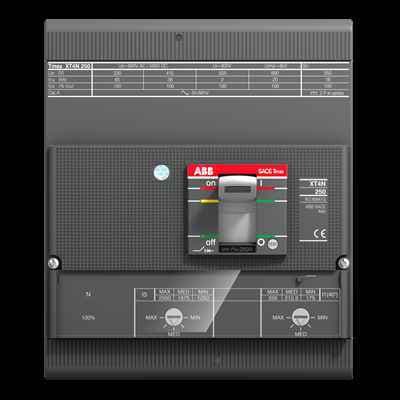

XT4N 160 TMD 16-300 4p F F

Name: XT4N 160 TMD 16-300 4p F F
Brand: ABB
SKU: XT4N 160 TMD 16-300 4p F F

The ABB XT4N 160 TMD 16-300 4P FF is a robust, three-pole molded case circuit breaker with a thermomagnetic release, suitable for AC/DC networks. It meets IEC standards for 690V and 16A, ensuring reliable protection against short-circuit currents up to 300A.

Product ModelXT4N 160 TMD 16-300 4p F F

Material Number1SDA068093R1

Product ID111160

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable ProtectionThe XT4N 160 TMD 16-300 4P FF provides reliable protection against short-circuit currents up to 300A, ensuring the safety of your electrical system.
2
2. High PerformanceDesigned to meet IEC standards, this circuit breaker operates at 690V and 16A, making it suitable for a wide range of applications.
3
3. Thermomagnetic ReleaseEquipped with a thermomagnetic release, this circuit breaker ensures efficient and reliable operation under various conditions.
4
4. Versatile ConnectivityThe XT4N series offers extensive connection conversion kits, mechanical, and electrical accessories, making it easy to integrate into your existing system.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Environmental Information

9AKK108467A6707

Product Net Width

140 mm

Product Net Height

160 mm

Product Net Depth / Length

82.5 mm

Product Net Weight

3.5 kg

Circuit Breaker Type to be Associated

Power Distribution

5. Advanced Connectivity OptionsFeaturing Bluetooth and Ekip connectivity, this circuit breaker simplifies the installation process by linking smartphones, tablets, and PCs in real-time with data analysis tools on the ABB AbilityTM Cloud platform.

Product Main Type

SACE Tmax XT

Product Name

Moulded Case Circuit Breaker

Product Type

Automatic Circuit Breaker

Version

CAD Dimensional Drawing

1SDH001295R0677

Connecting Capacity Main Circuit

Busbar 85..200 mmÂ²

Current Type

AC/DC

Electrical Durability

120 cycles per hour 8000 cycle

Mechanical Durability

240 cycles per hour 25000 cycle

Number of Poles

Opening Time

CB with SOR 15 ms CB with UVR 15 ms

Order Multiple

1 piece

Power Loss

at Rated Operating Conditions per Pole 2.5 W

Rated Current (In)

16 A

Rated Frequency (f)

50 / 60 Hz

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Instantaneous Short-Circuit Current Setting (Ii)

300 A

Rated Insulation Voltage (Ui)

1000 V

Rated Operational Voltage

690 V AC 750 V DC

Rated Service Short-Circuit Breaking Capacity (Ics)

(220 V AC) 65 kA (230 V AC) 65 kA (240 V AC) 65 kA (380 V AC) 36 kA (415 V AC) 36 kA (440 V AC) 36 kA (500 V AC) 30 kA (525 V AC) 20 kA (690 V AC) 10 kA (250 V DC) 2 Poles in Series 36 kA (500 V DC) 2 Poles in Series 36 kA (500 V DC) 3 Poles in Series 36 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

Rated Uninterrupted Current (Iu)

160 A

Rated Voltage (Ur)

690 V

Recommended Screw Driver

Main Circuit M8

Release

TMD

Release Type

Setting Range

11.2...16 A

Short-Circuit Performance Level

Standards

IEC60947-2

Sub-type

XT4

Terminal Connection Type

Front

Terminal Type

Bolt

Tightening Torque

8 NÂ·m

ETIM 8

EC000228 - Power circuit-breaker for trafo/generator/installation protection

ETIM 9

EC000228 - Power circuit-breaker for trafo/generator/installation protection

Object Classification Code

UNSPSC

39120000

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

eClass

V11.1 : 27370409

Manufacturer ID

1SDA068093R1
