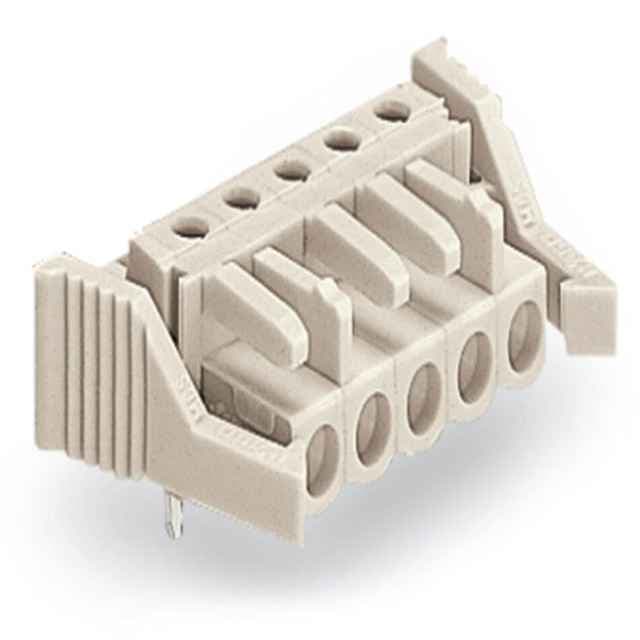

WAGO 722-235/039-000: 5-pole THT female header, angled, 5mm pin spacing, locking lever, and 100% protected against mismating.
Product Model722-235/039-000
Product ID111088
Stock on Request
Last updated: 8/29/2026
Key Features
1
Feature100% protection against mismating for secure connections
2
FeatureLocking lever ensures reliable and stable connections
3
FeatureAngled design for easy installation and space-saving
4
Feature0.6 x 1.0 mm solder pins for robust and durable connections
5
FeatureLight gray color for easy identification and visibility
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Safety information
TheMCS MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Other pole numbers
Total number of potentials
5
Number of connection types
1
Number of levels
1
Pin spacing
5 mm / 0.197 inches
Width
40.8 mm / 1.606 inches
Height
16.6 mm / 0.654 inches
Height from the surface
11.6 mm / 0.457 inches
Depth
18.25 mm / 0.719 inches
Solder pin length
5mm
Solder pin dimensions
0.6 x 1 mm
Drilled hole diameter with tolerance
1.3(+0.1)mm
Variable coding
Yes
Anti-rotation protection
Yes
Contact type (pluggable connector)
Female header
Connector (connection type)
for PCB
Mismating protection
Yes
Plugging without loss of pin spacing
No
Mating direction to the PCB
0°
Locking of plug-in connection
locking lever
PCB contact
THT
Solder pin arrangement
over the entire female connector (in-line)
Number of solder pins per potential
1
Note (material data)
Information on material specifications can be found here
